How to Send a WhatsApp Chatbot Message Triggered by an Event via Integromat

With connector services, you can track events in one system and transfer data to another. For example, you can track orders, payments, abandoned carts, customer registration, incoming messages, and other information and then continue your communication with the customer with SendPulse.

This article will show you how to create a scenario with event tracking in Integromat, send order data to SendPulse and a message to WhatsApp, or add a contact to an audience with additional data.

Set up the Trigger

The first element is a trigger that launches your scenario.

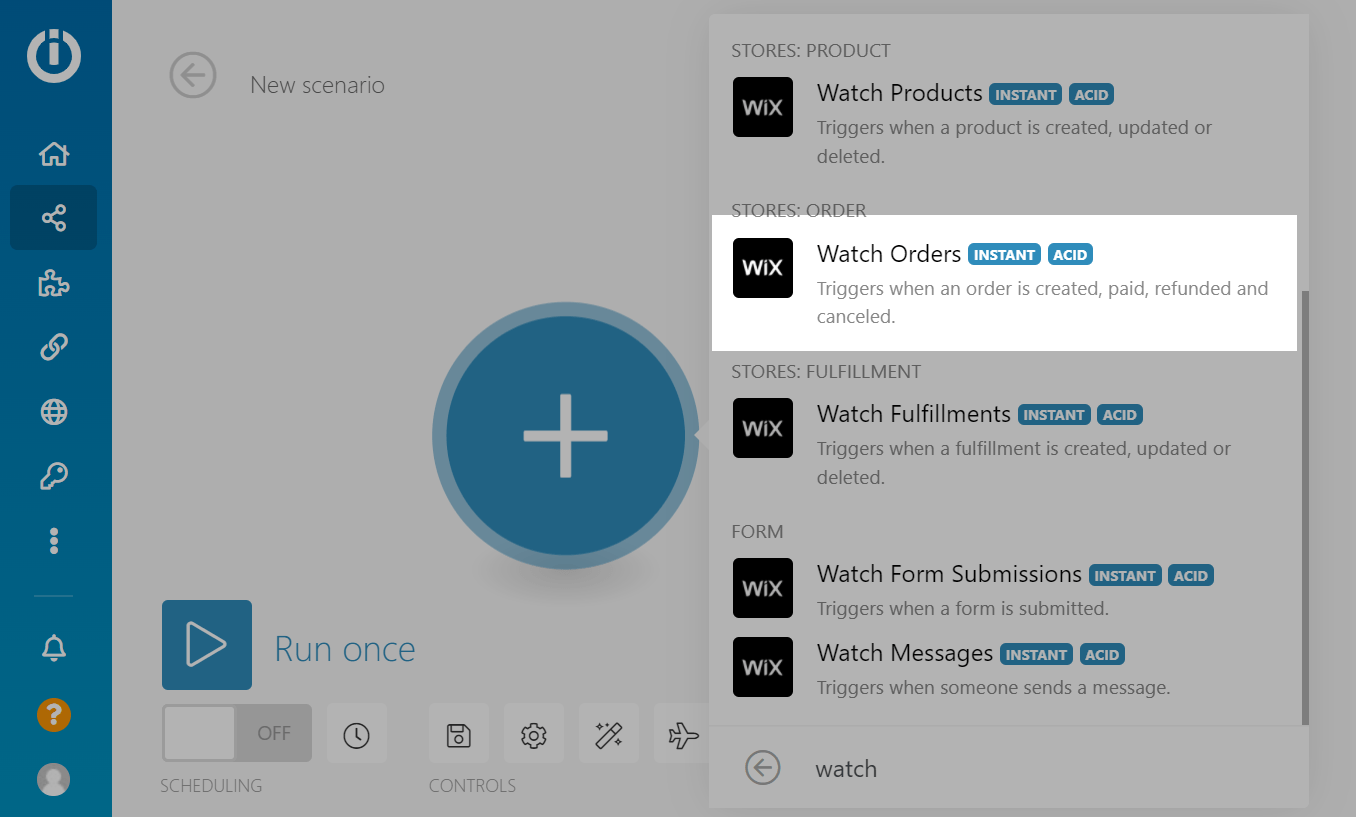

We selected WIX and the "Watch Orders" trigger for our example.

You can also select other events that start with the word "Watch" as the start trigger. Check the complete list of available triggers in WIX:

Watch Carts Tracks events when the user adds an item to a cart, completes checkout, drops, or returns to cart in the online store.
Watch Contacts Tracks events when a contact is created, or contact details are updated.
Watch Fulfillments Tracks events of creating, updating, or deleting orders in the order fulfillment service.
Watch Orders Tracks events when orders are created, paid for, canceled, or refunded.
Watch Collections Tracks events when product collections are created, updated, or deleted.
Watch Form Submissions Tracks events when a form is filled out on the site.
Watch Messages Tracks events of incoming and outgoing messages in WIX chat.
Watch Products Tracks events when an item is created, updated, or deleted in the store.

Create a Webhook to Connect to WIX

If you have not previously connected an app in Integromat, you need to create a webhook to add a connection to your selected app (in our example, it is WIX).

To do this, click Add in the element next to the "Webhooks" field. In the window next to the "Connections" field, click Add.

How to create a Wix connection with Integromat:

  1. Go to the developers page in WIX, and create an app for your site in WIX.
  2. Go to the "Permissions" tab in the left panel, and click +Add Permission. Add permissions to the desired services: Wix Developers, Wix CRM, Wix Coupons,Wix Chat, Wix Stores, and Wix Payments
  3. Go back to the "Oath" tab, and paste the following URL into the "Redirect URL" and "App URL" fields: https://www.integromat.com/oauth/cb/wix
  4. In the upper right corner, click Test your app, and select "App Market Website". In the dialog box, click Test app.
  5. In the next window, add your app to the site.

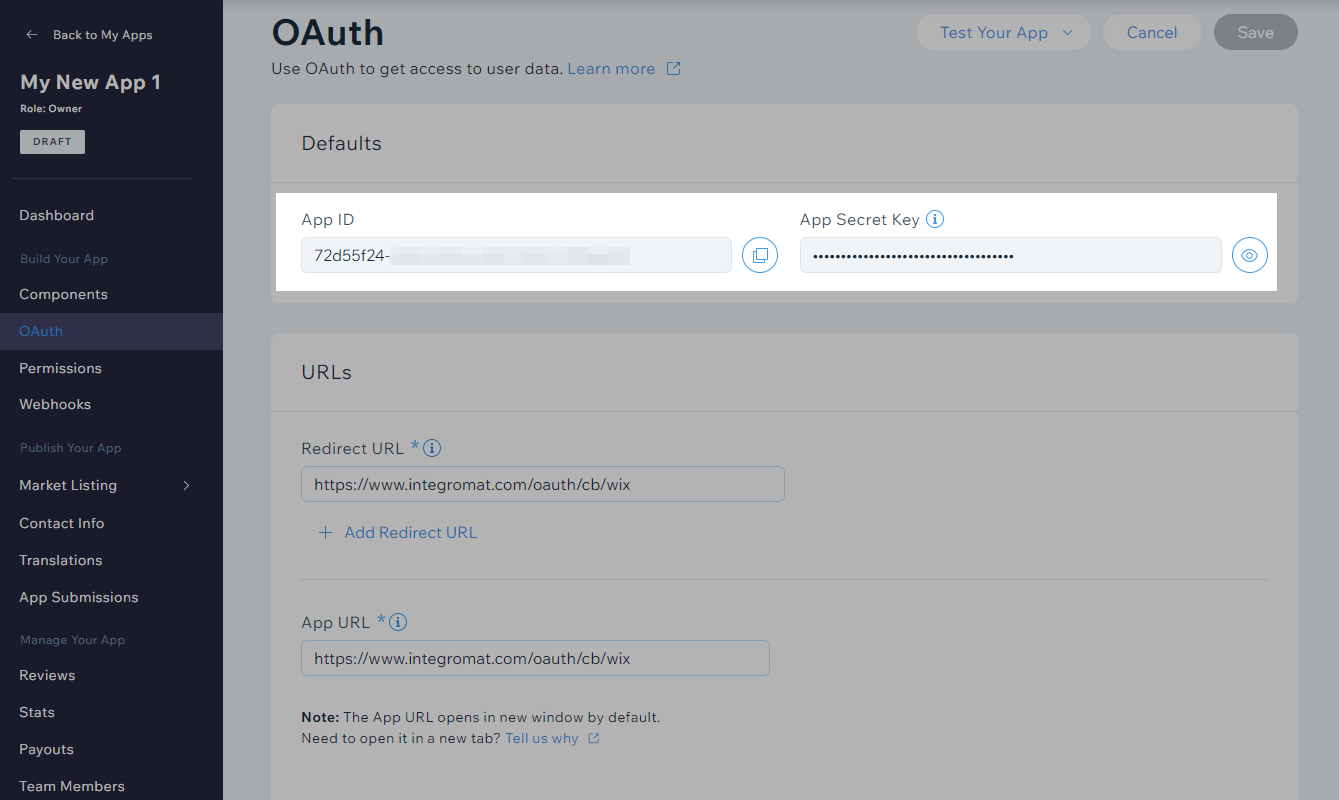

  6. Go back to the "Oath" tab, and copy the values from the "App ID" and "App Secret" fields.

Read more: How to connect WIX

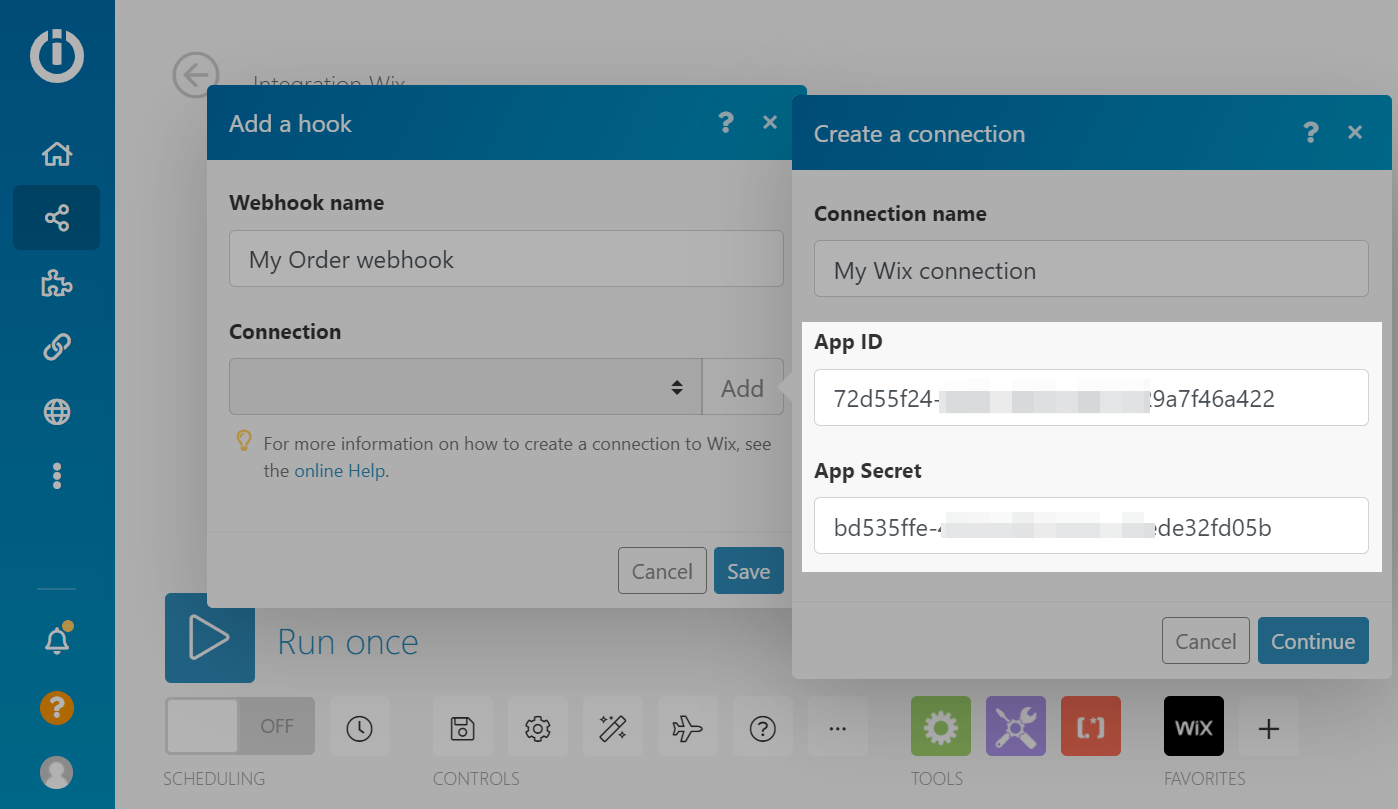

Go back to the Integromat scenario builder, enter the copied ID and Secret, and click Connect.

In the next window, select the site and the app you created, and provide an Integromat permission to retrieve the information.

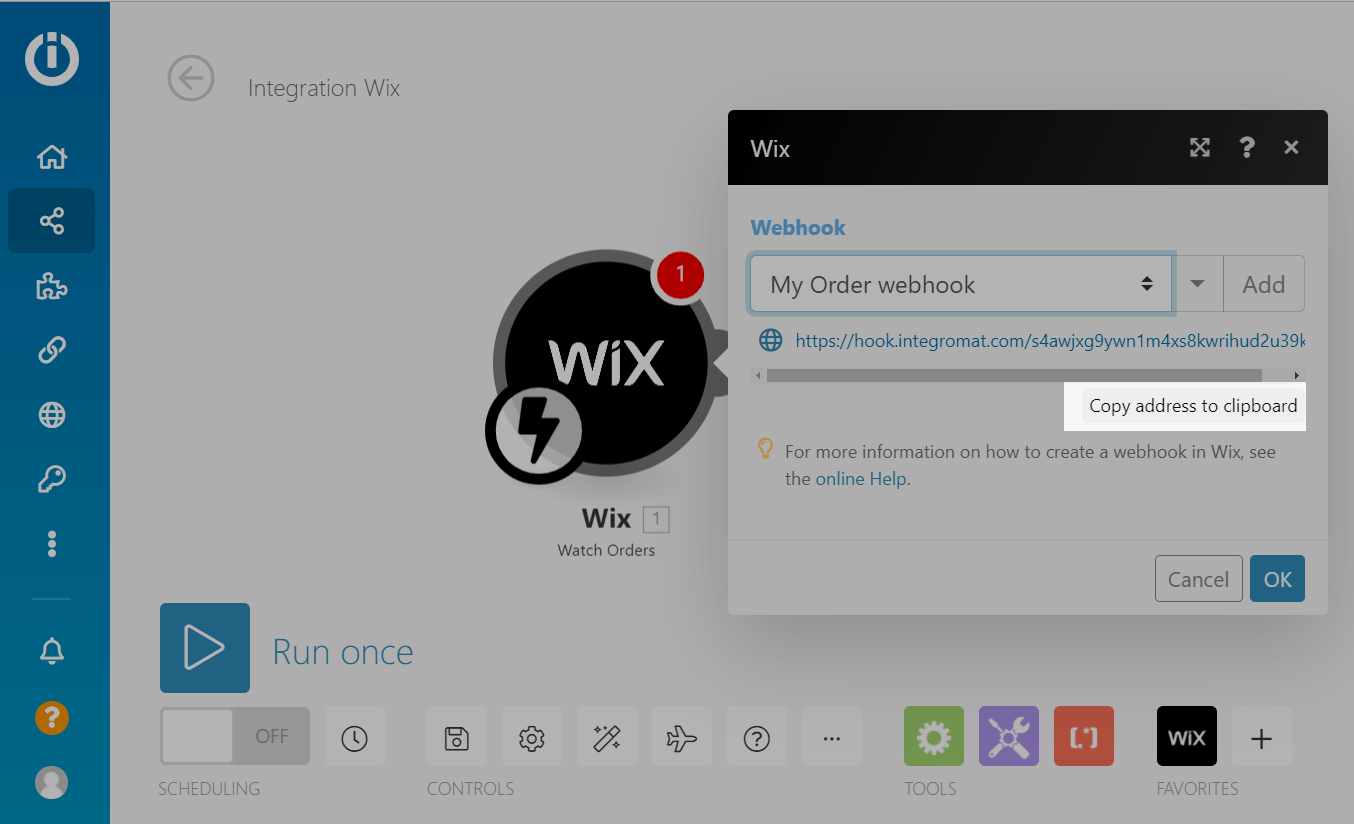

After a successful connection, copy the resulting webhook URL.

Add a Webhook Trigger to the WIX App

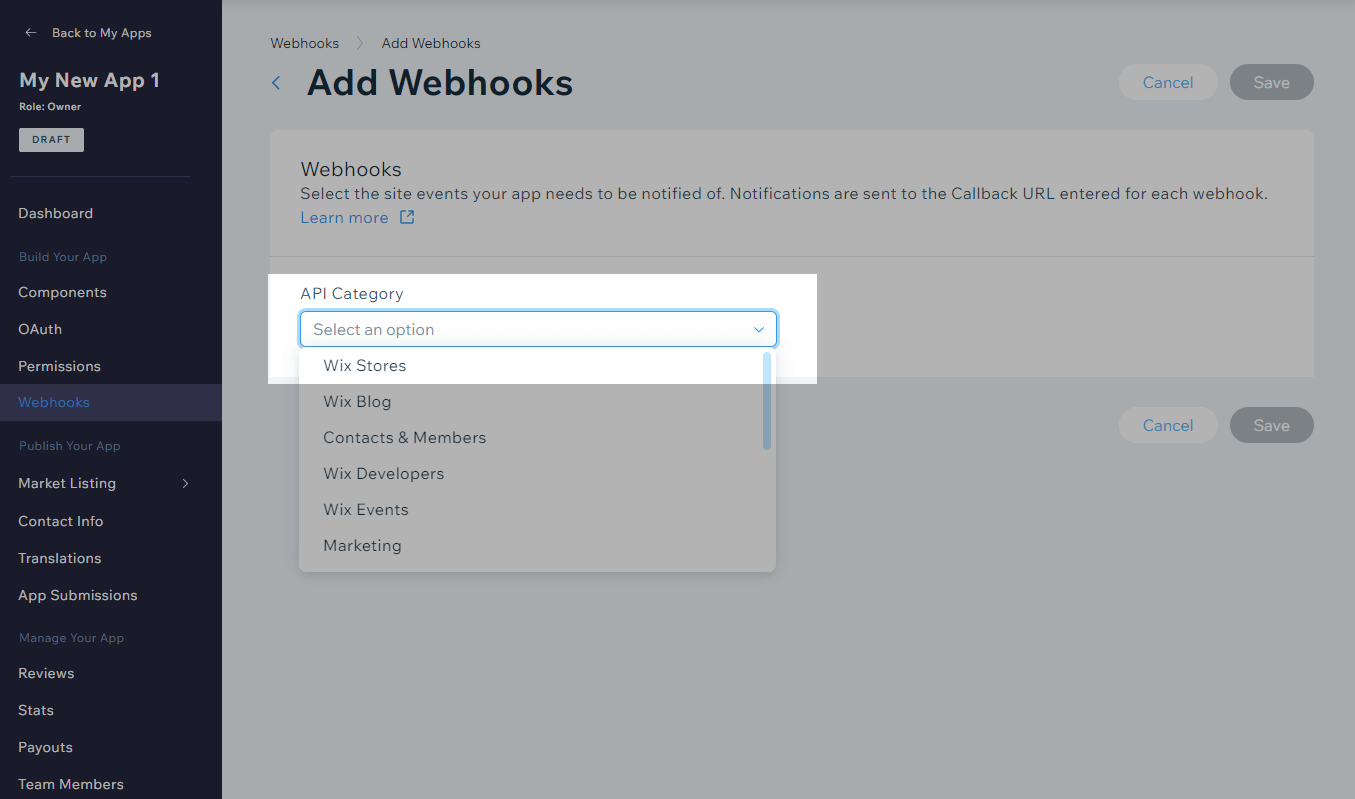

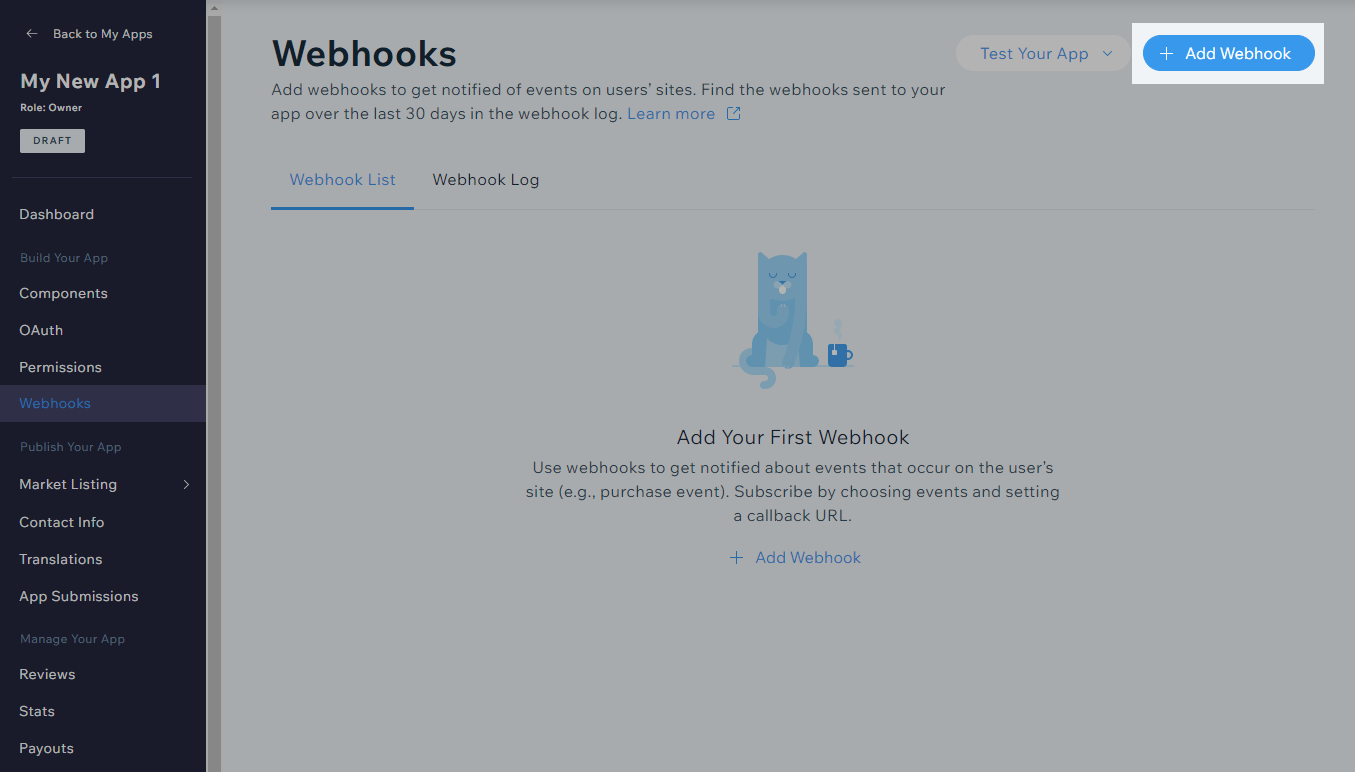

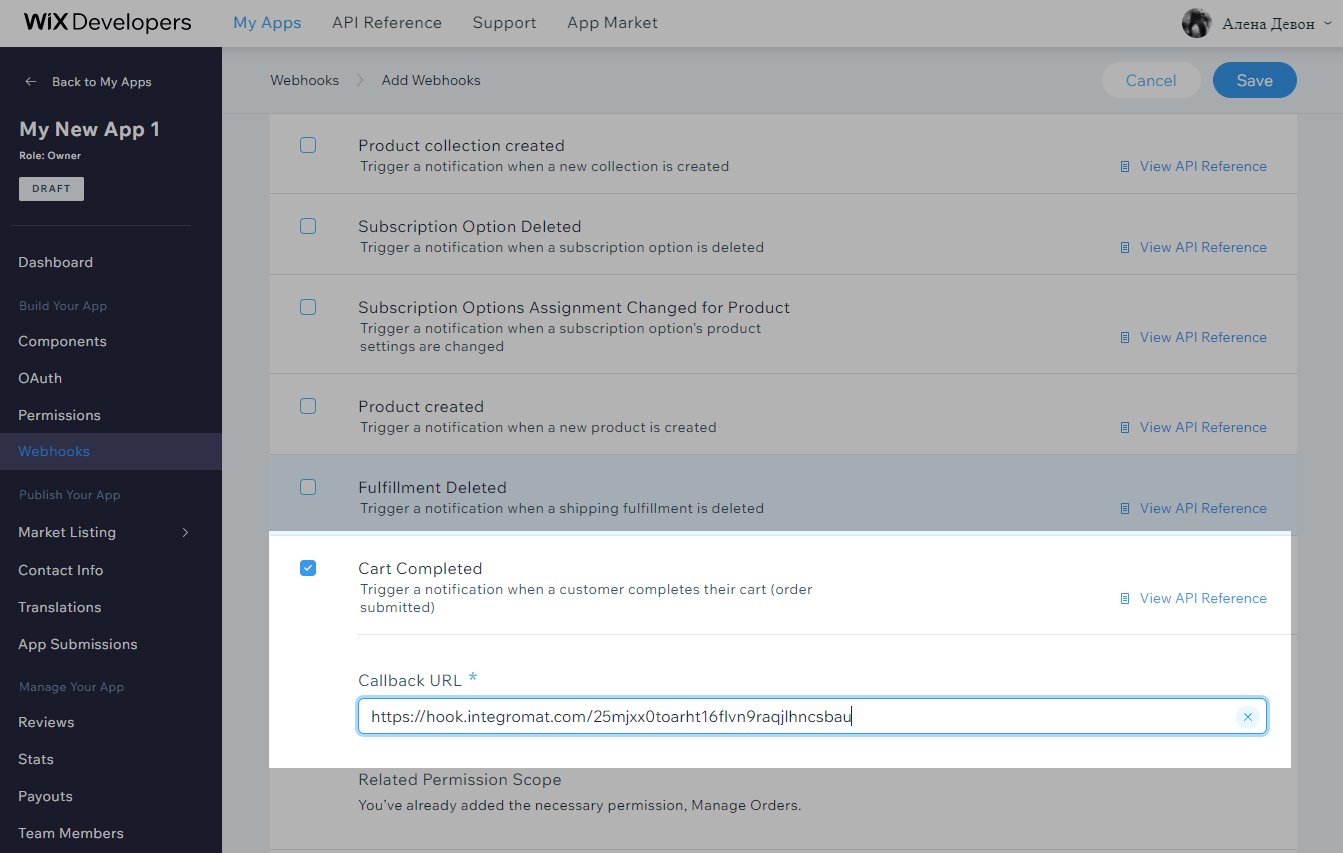

Go to the developer’s page in WIX, and click +Add Webhook under the "Webhooks" tab.

Select a category corresponding to the trigger from the "API Category" list. In our example, it is "Wix Stores.”

Select the events you want to track, and insert a webhook.

Click Save.

Each time you make changes to the WIX Developers settings, make sure you click Save in the upper right corner to accept the settings.

Read more about configuring the "Watch Orders" and other triggers in the WIX documentation.

Test the Trigger

To configure the correspondence of the information received in WIX to the fields written in the “Action” element, you need to test the data and get the data structure.

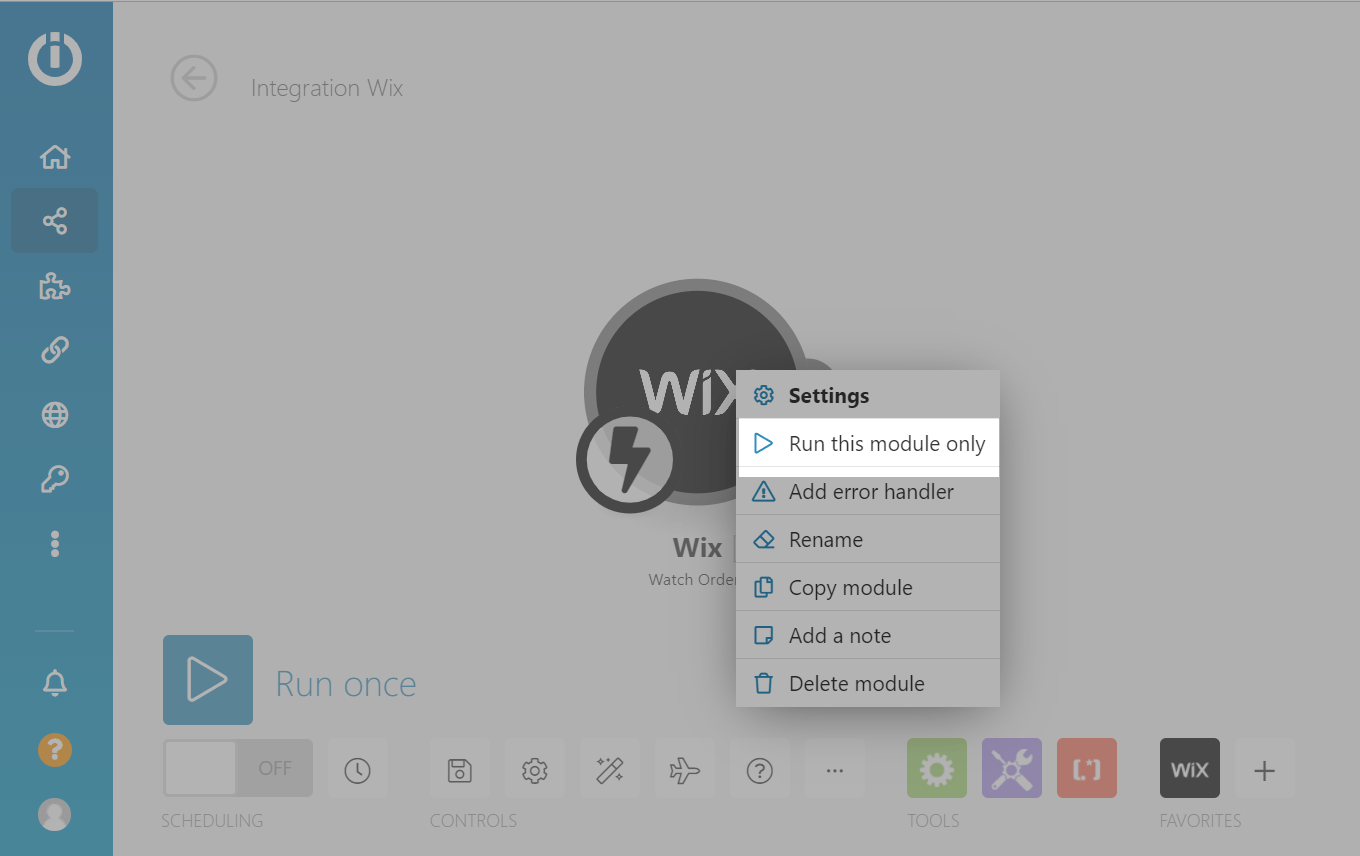

Right-click on the start trigger item, and select "Run this module only.” Run the tracked event in Wix.

Read also: Setting Up Your Store and How to Create Your Online Store.

When you have more items in the scenario, you can click Run once and test the whole bundle.

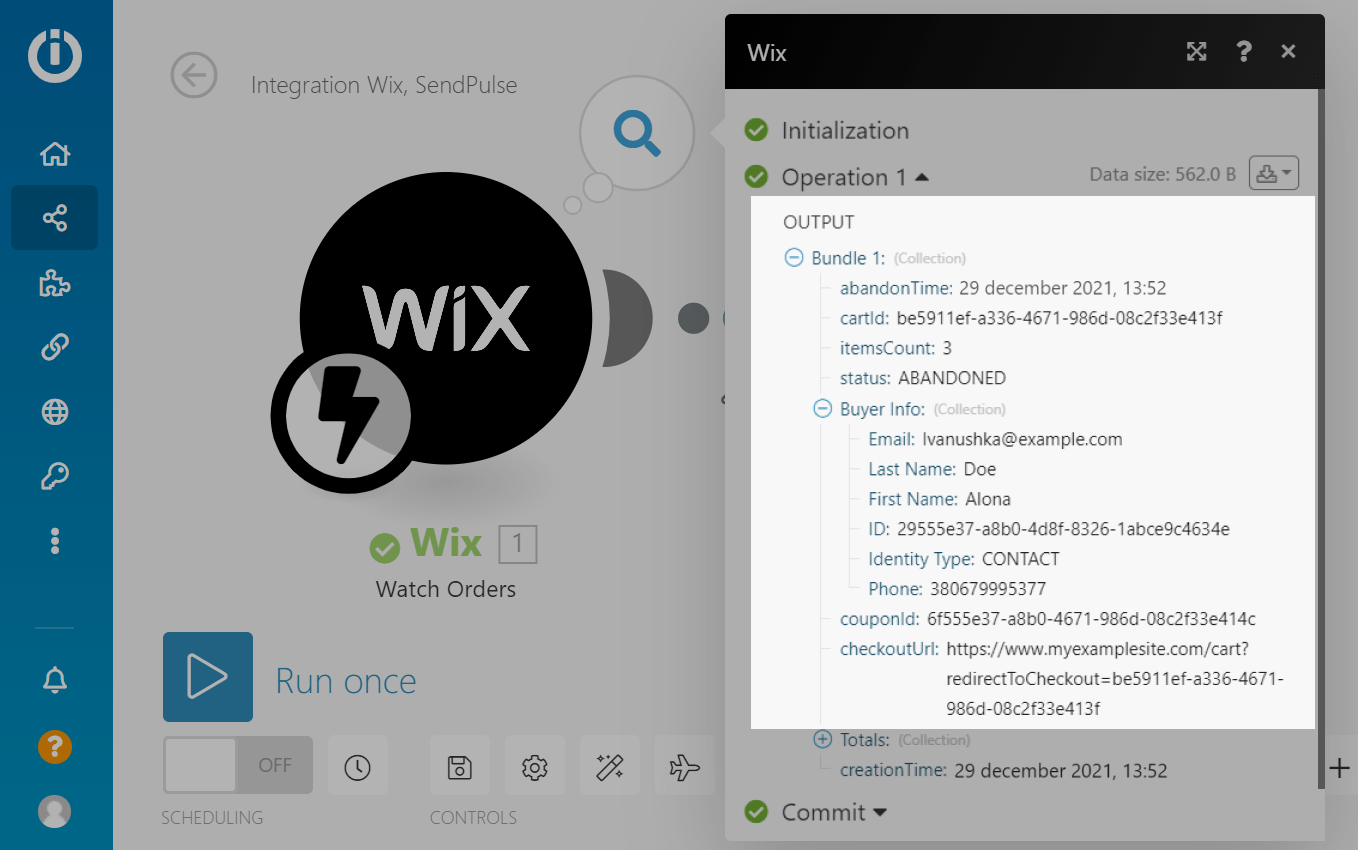

After a successful test, you will receive the structure of the variables you will receive with this element that you can use later in the scenario.

Set Up the Action

You can send a message to the users via WhatsApp by phone number or add them to the audience and start the flow.

Action "Send Template Message to Phone"

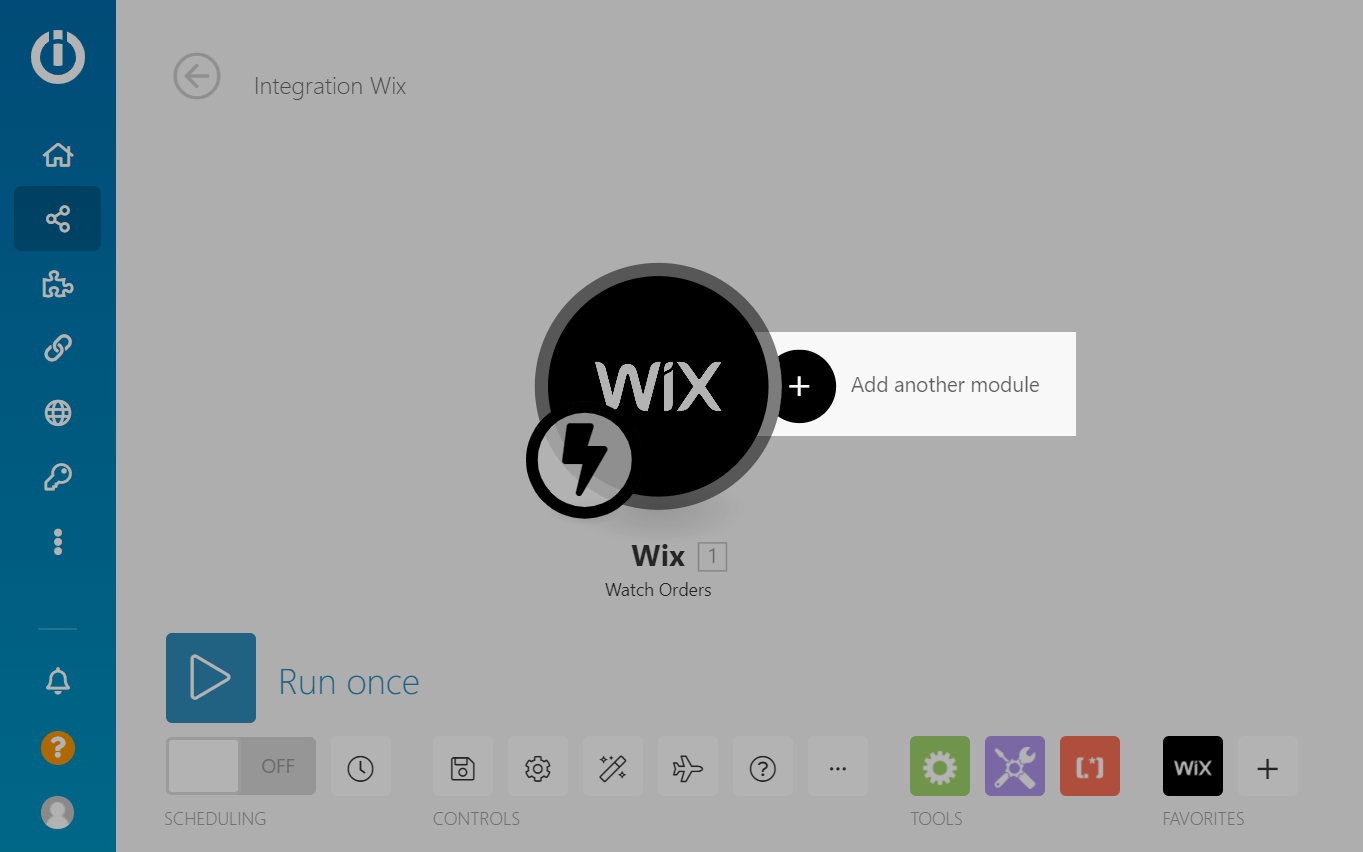

Click Add another module next to the "Wix" box.

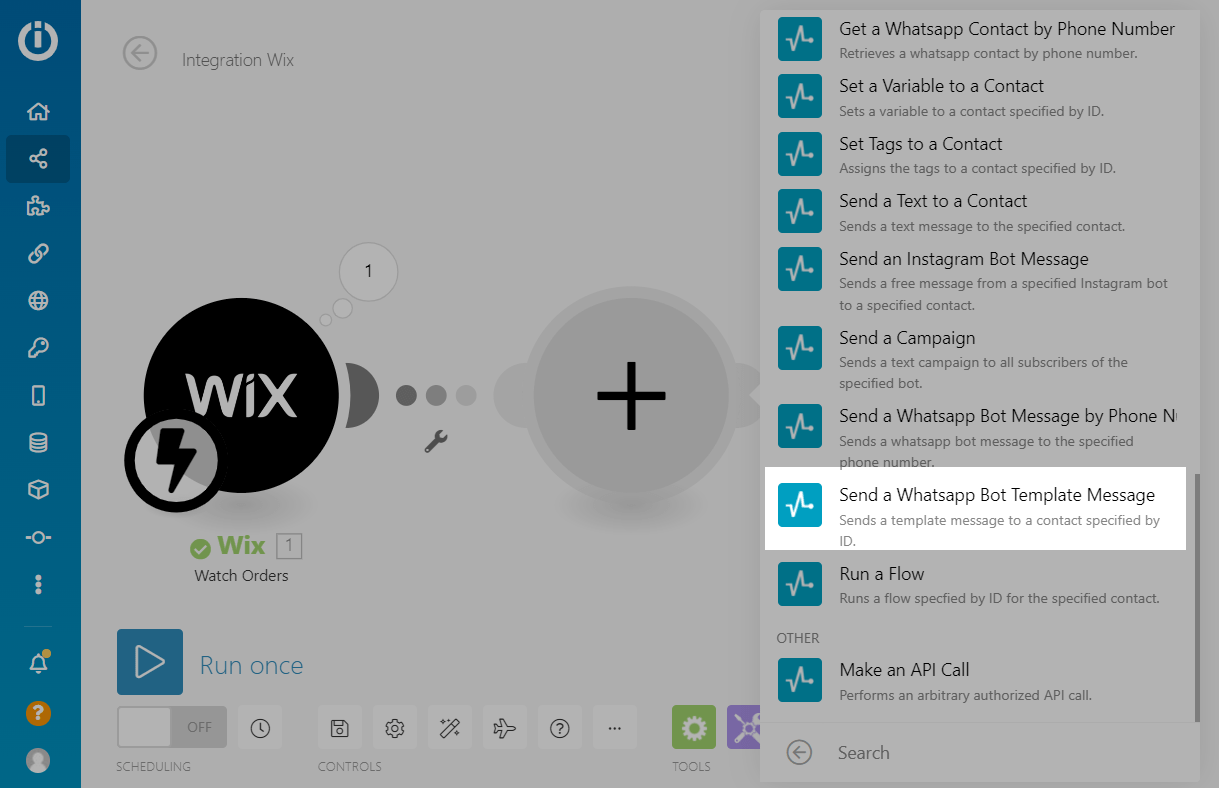

Add a new "SendPulse" element, and select the "Send a WhatsApp Bot Template message" action.

If the user does not initiate the conversation first, you can only send templated messages.

After the user responds and starts the session, you can send free messages through the chatbot.

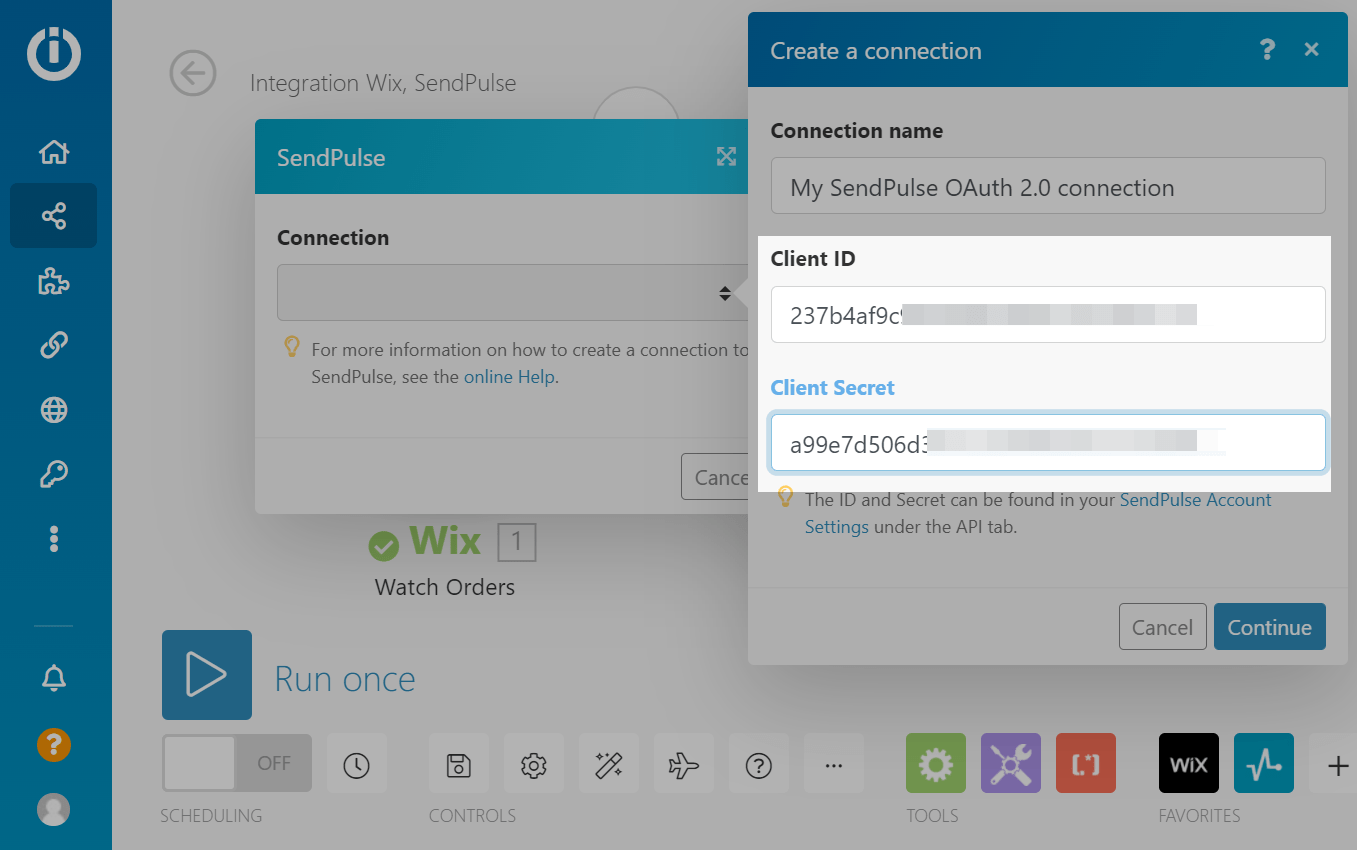

At the "Connection" field, you need to click Add and enter the ID and Secret from the "API" account settings in SendPulse.

Click Continue.

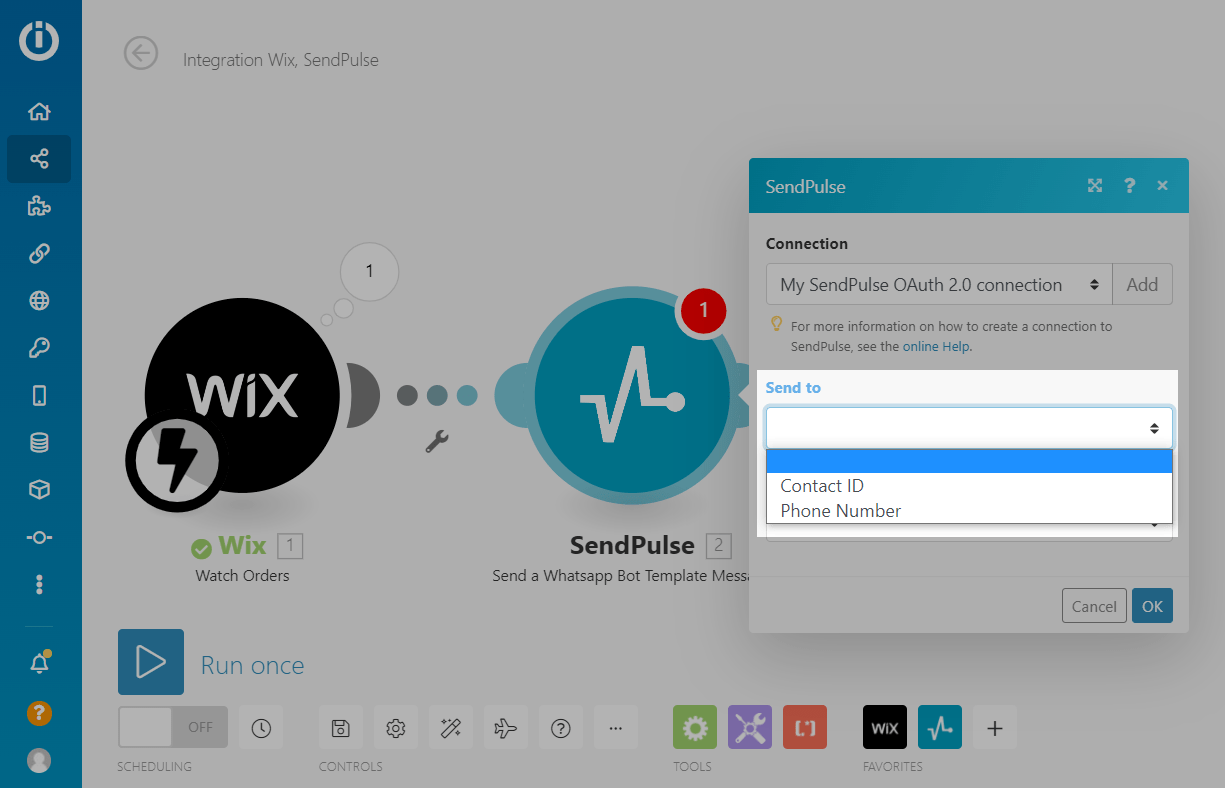

Select the method of user identification — by number or contact ID.

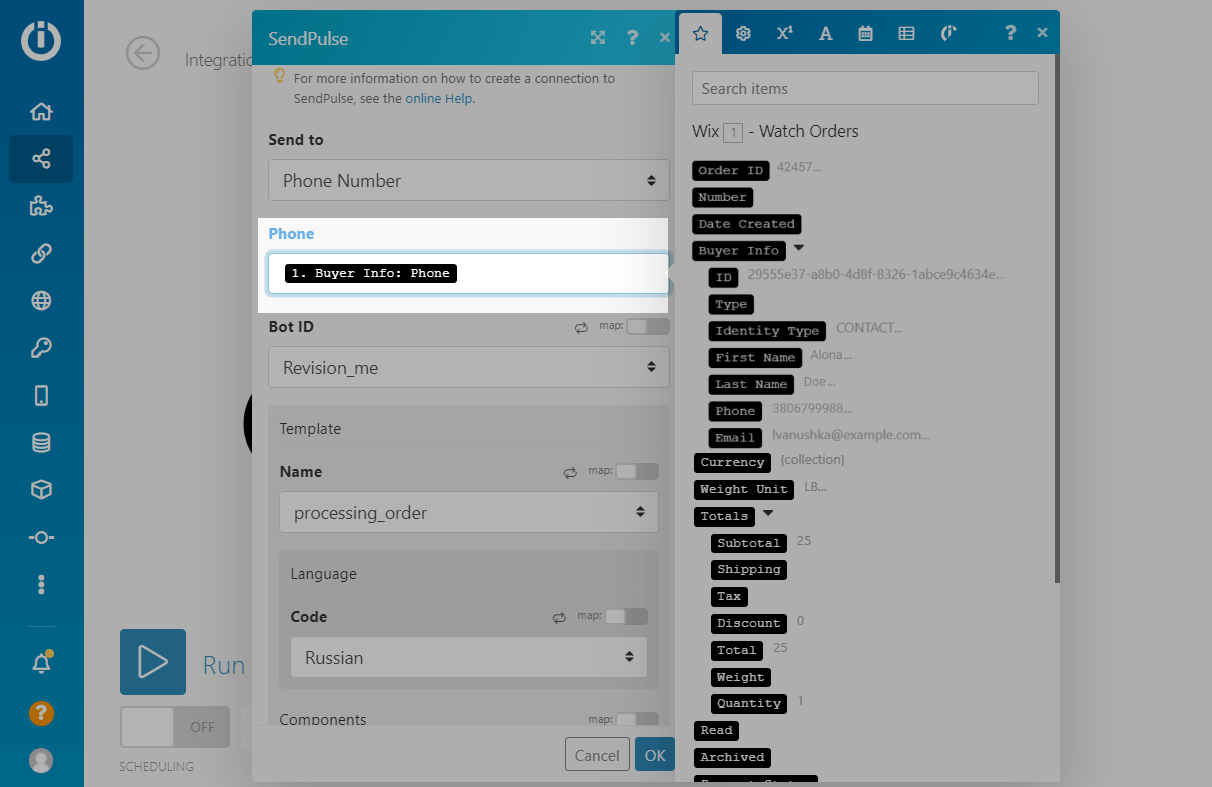

Select the phone variable.

Note that you need to enter the number in the international format. You can add an error handler to continue your scenario in case your message is sent unsuccessfully.

You can also add the "Phone" element to write the phone number in the international format. You can select only 1 country per item to convert the number. To add more countries, use the "Router" and multiple "Phone" elements.

Choose a WhatsApp chatbot.

Read also: How to Сreate a WhatsApp Сhatbot

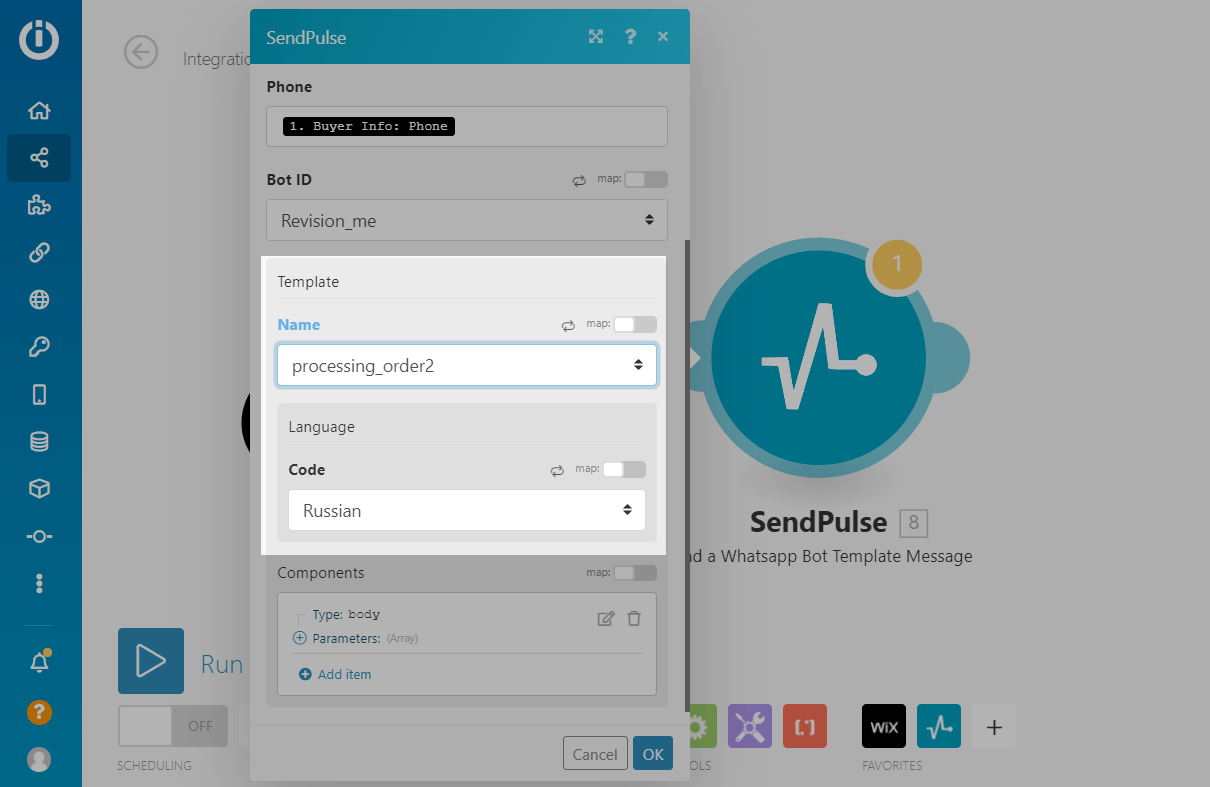

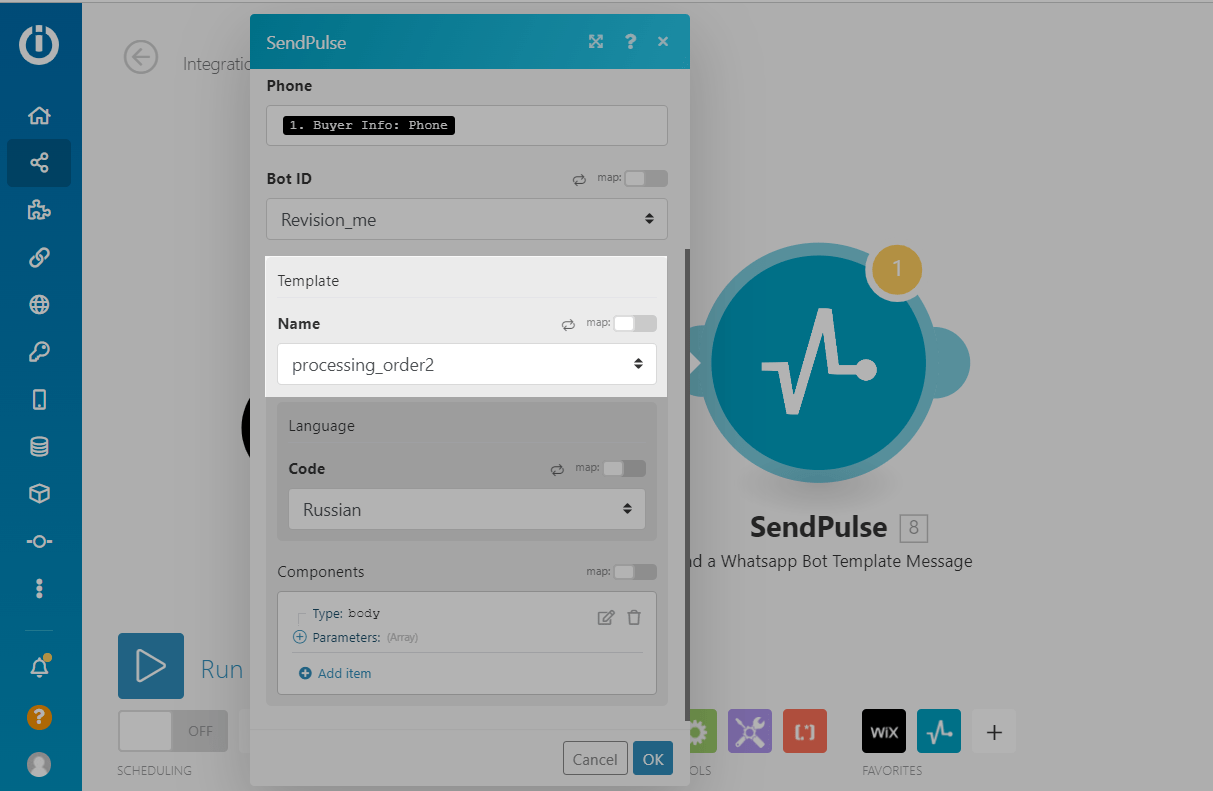

Select an approved template.

Read also: How to Add a Template for WhatsApp Campaigns

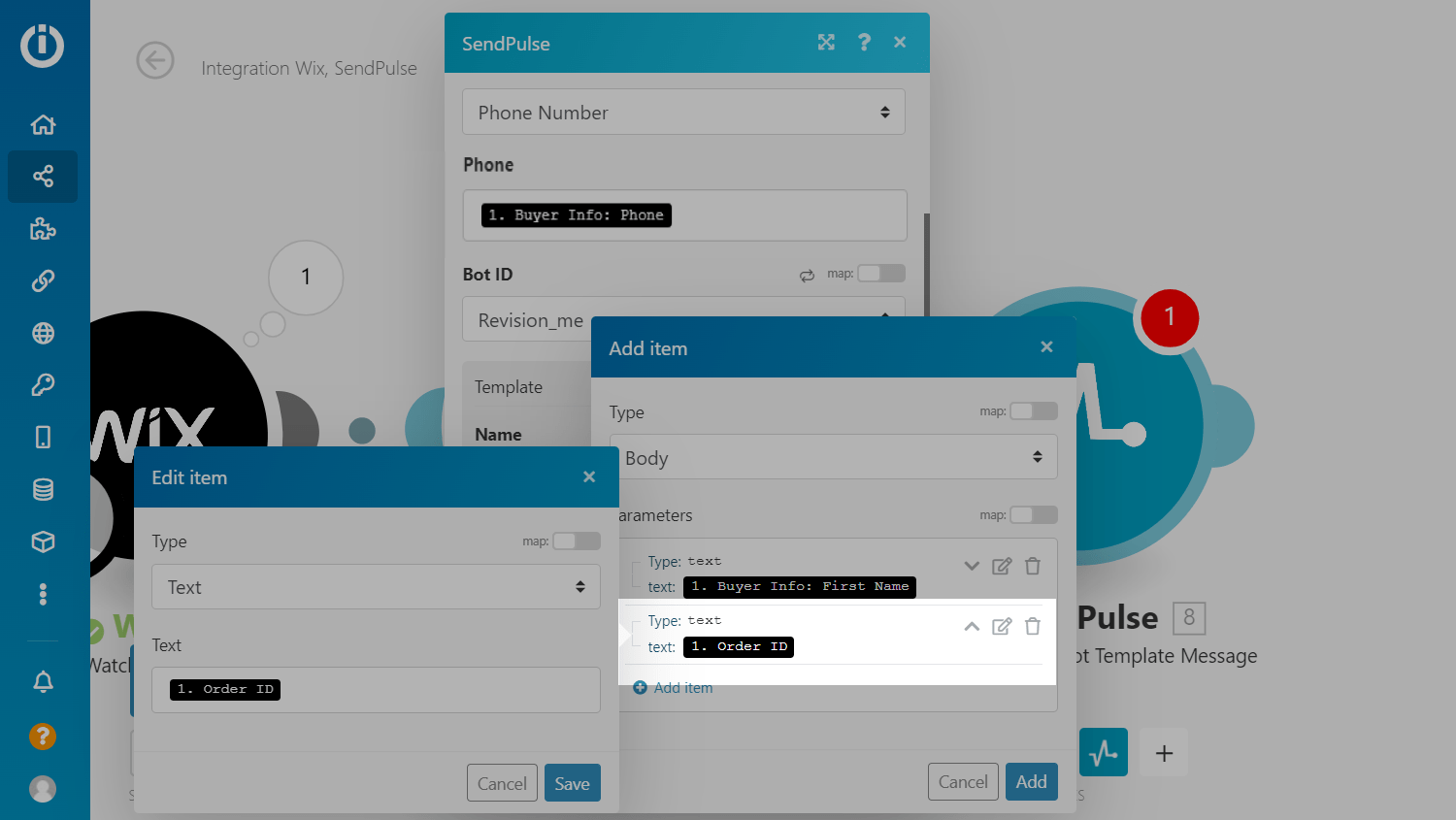

To add variables to the message, click Add item under the "Components" field.

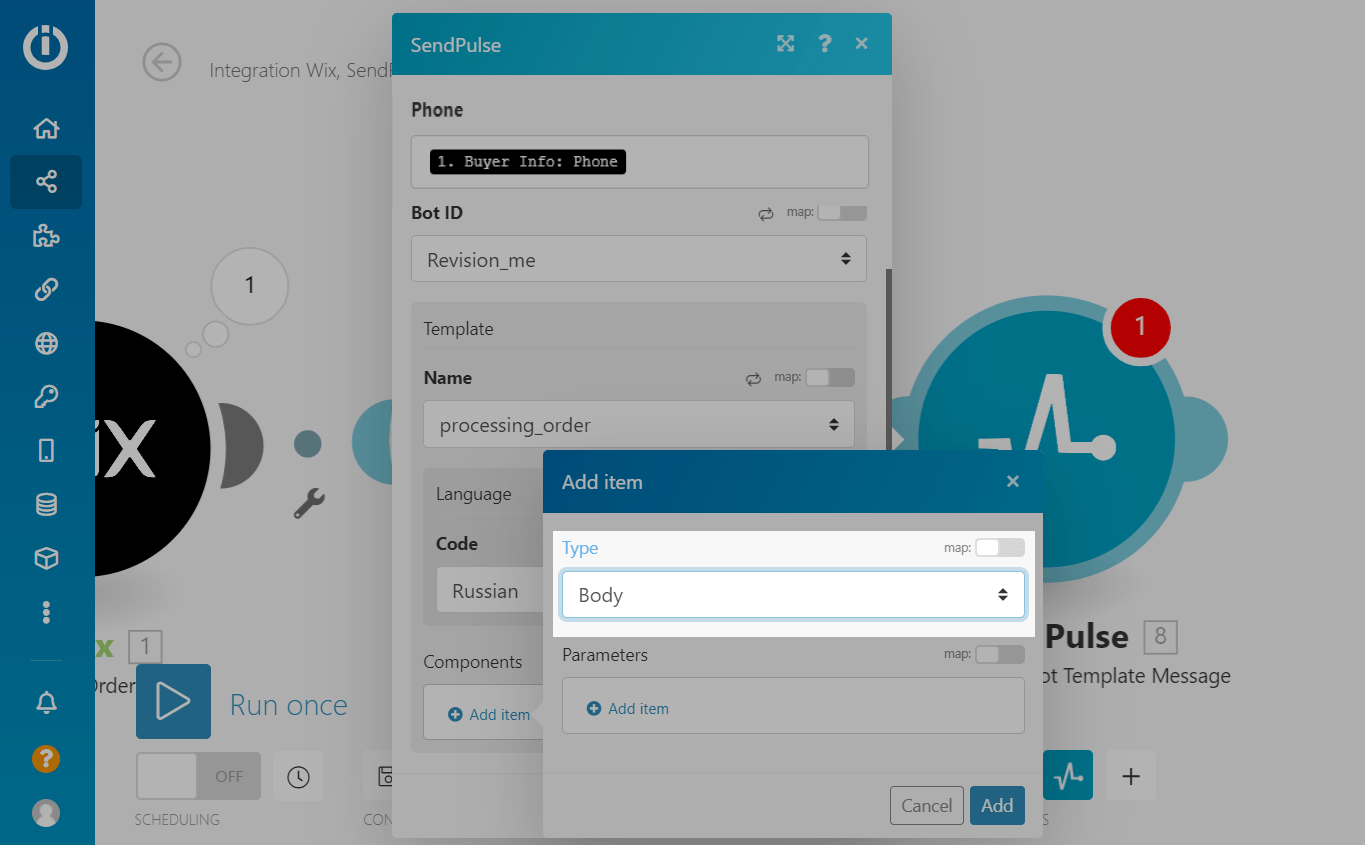

Select the "Body" type.

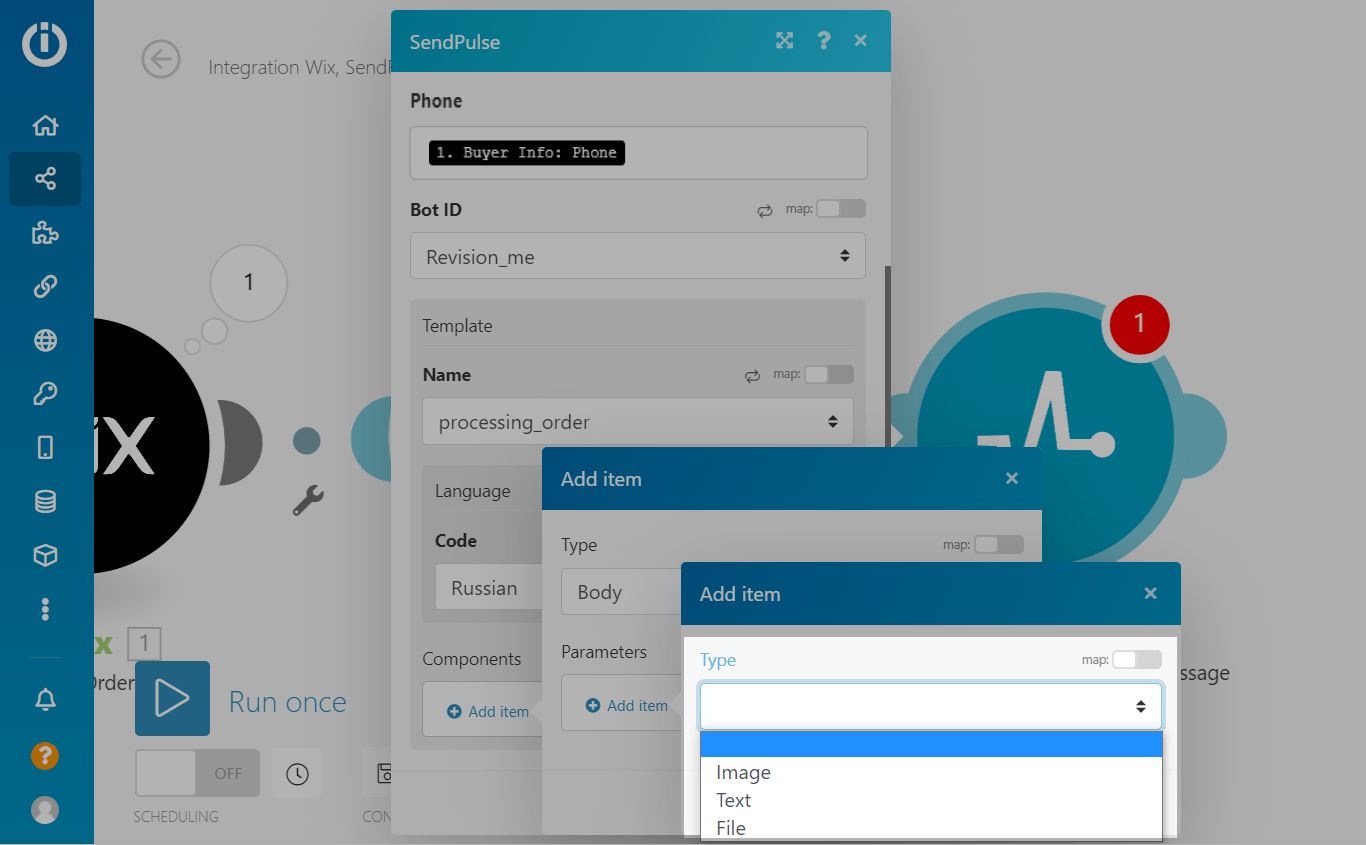

Under the "Parameters" field, click Add item, and select the type of variable.

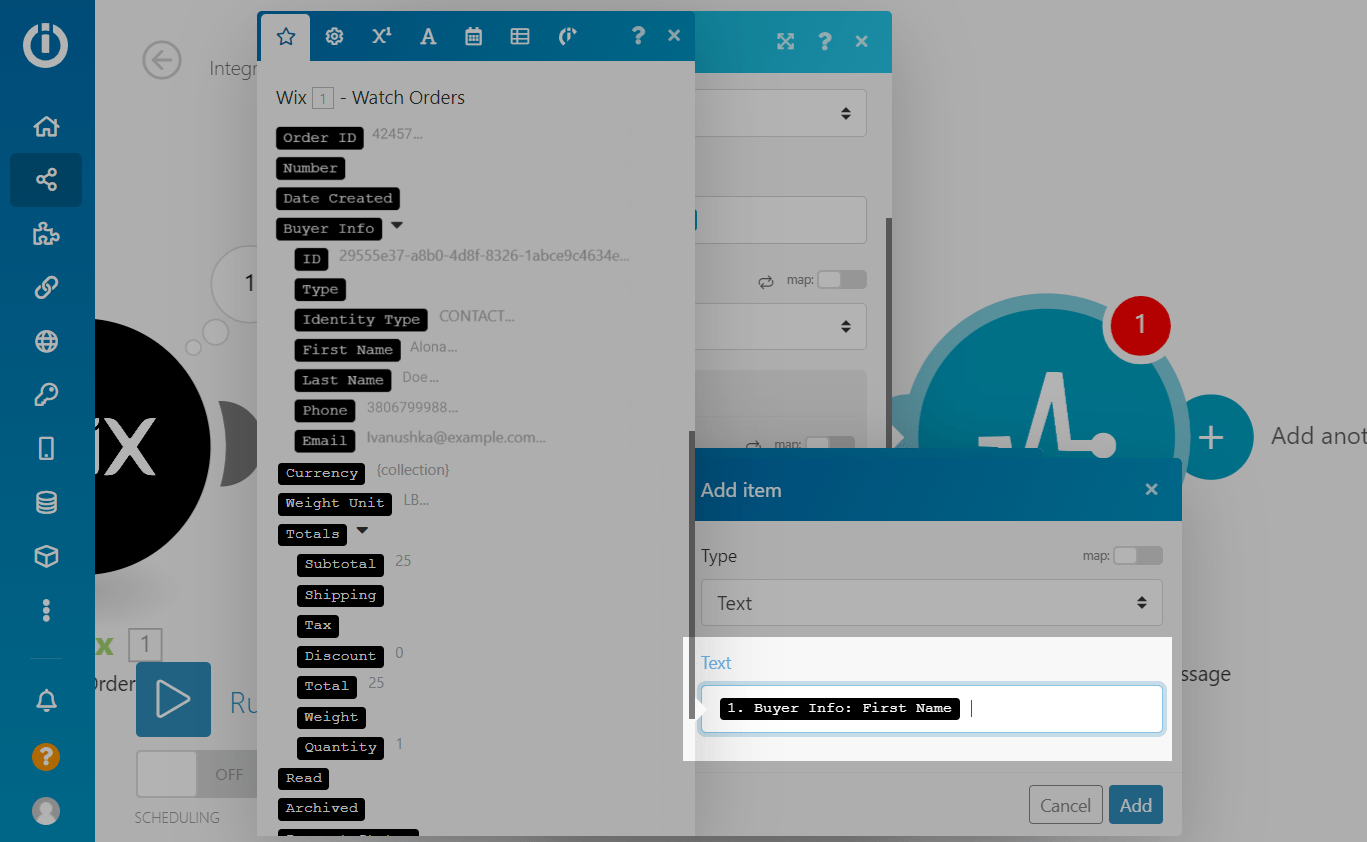

Select the variable, and click Add.

Note that the SendPulse WhatsApp API does not specify the name of the variables — the variables are substituted in the order in which you add them.

For example, let’s take the following template:

“Hello {{1}} Your order {{2}} is in progress. You can track the status of your order in your personal account. Have a nice day!"

The first variable from WIX should be with the name, and the second variable should be with the order status.

You can keep adding as many variables as your template requires.

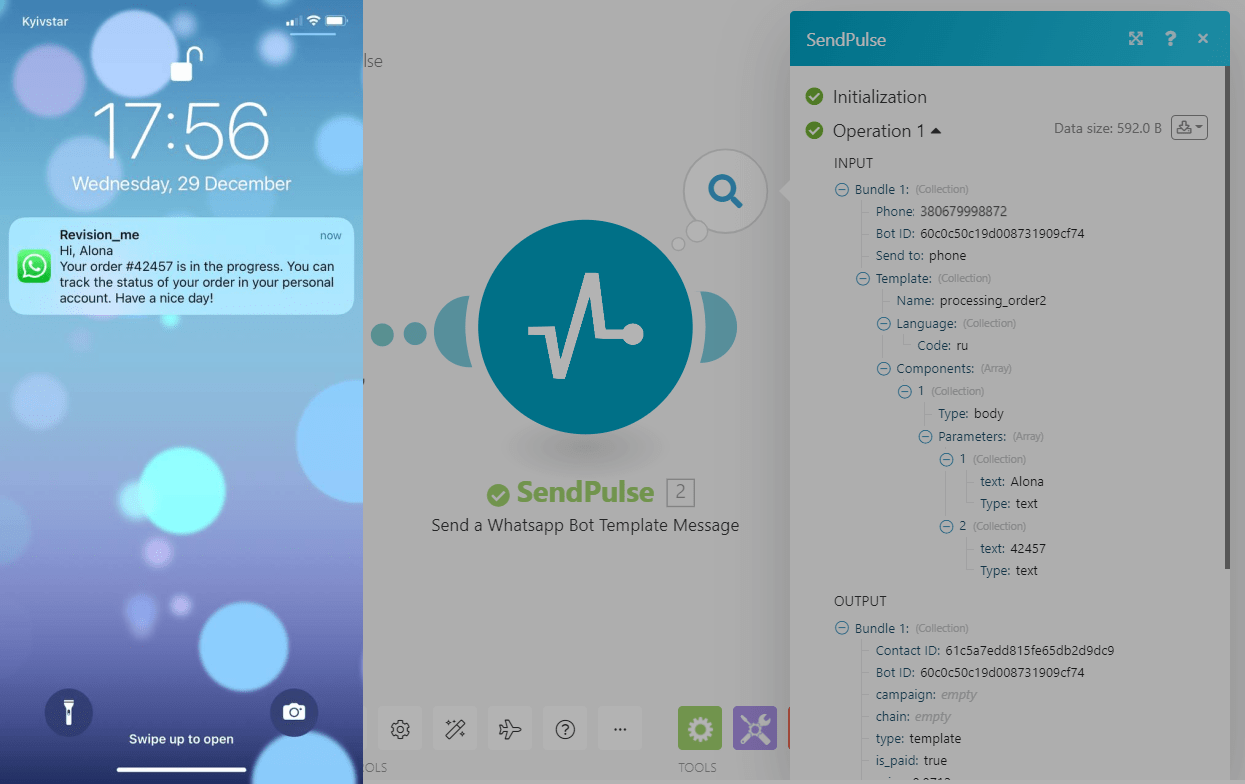

To test your scenario, click Run once. To view the data received and sent by the element, click on the number to the right of the element. Apart from that, don’t forget to check the messenger you sent the message to or the chat in your account.

Action "Create a Contact in SendPulse"

Click Add another module next to the "Wix" element, and add a new "SendPulse" element. Select the "Make API call" action.

Note that you can only transfer your contact data once with the "Create Contact" method. To update existing variables, use the "Set Variable" method, but remember to get the contact_id in other methods first

In the "Connection" field, select the created connection to SendPulse.

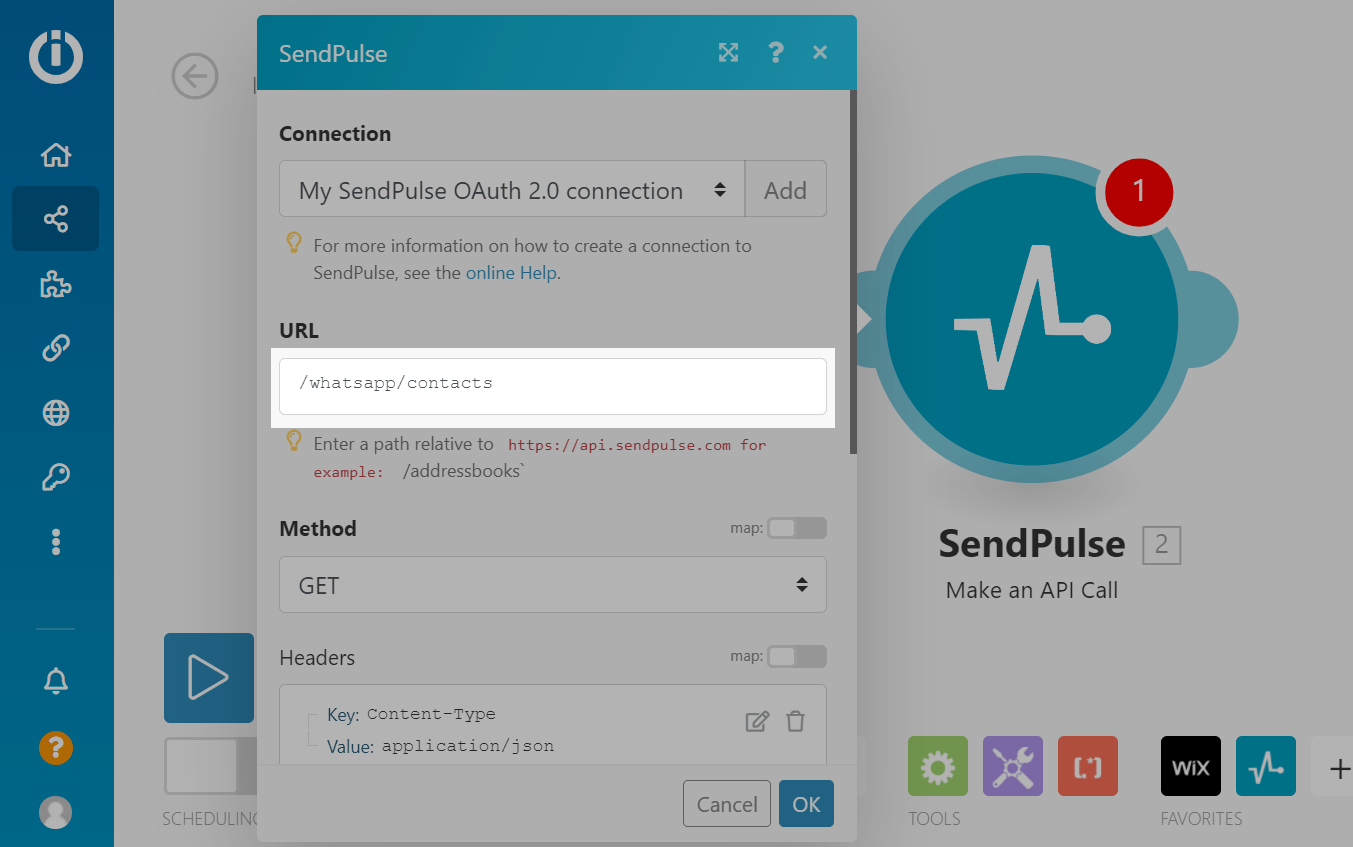

In the URL field, insert the endpoint of the "Create a new contact in the WhatsApp chatbot audience" request:

/whatsapp/contacts

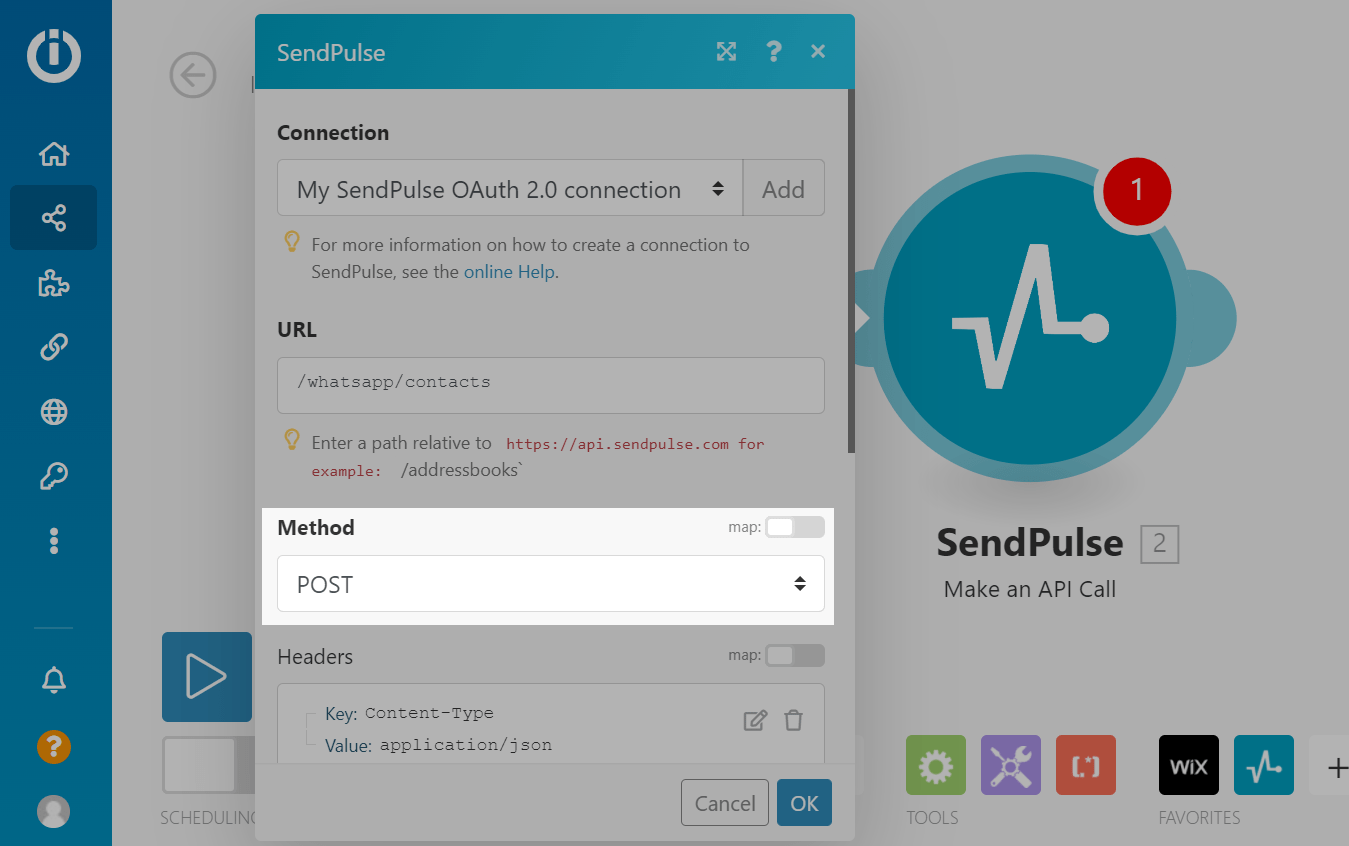

Select the "POST" method.

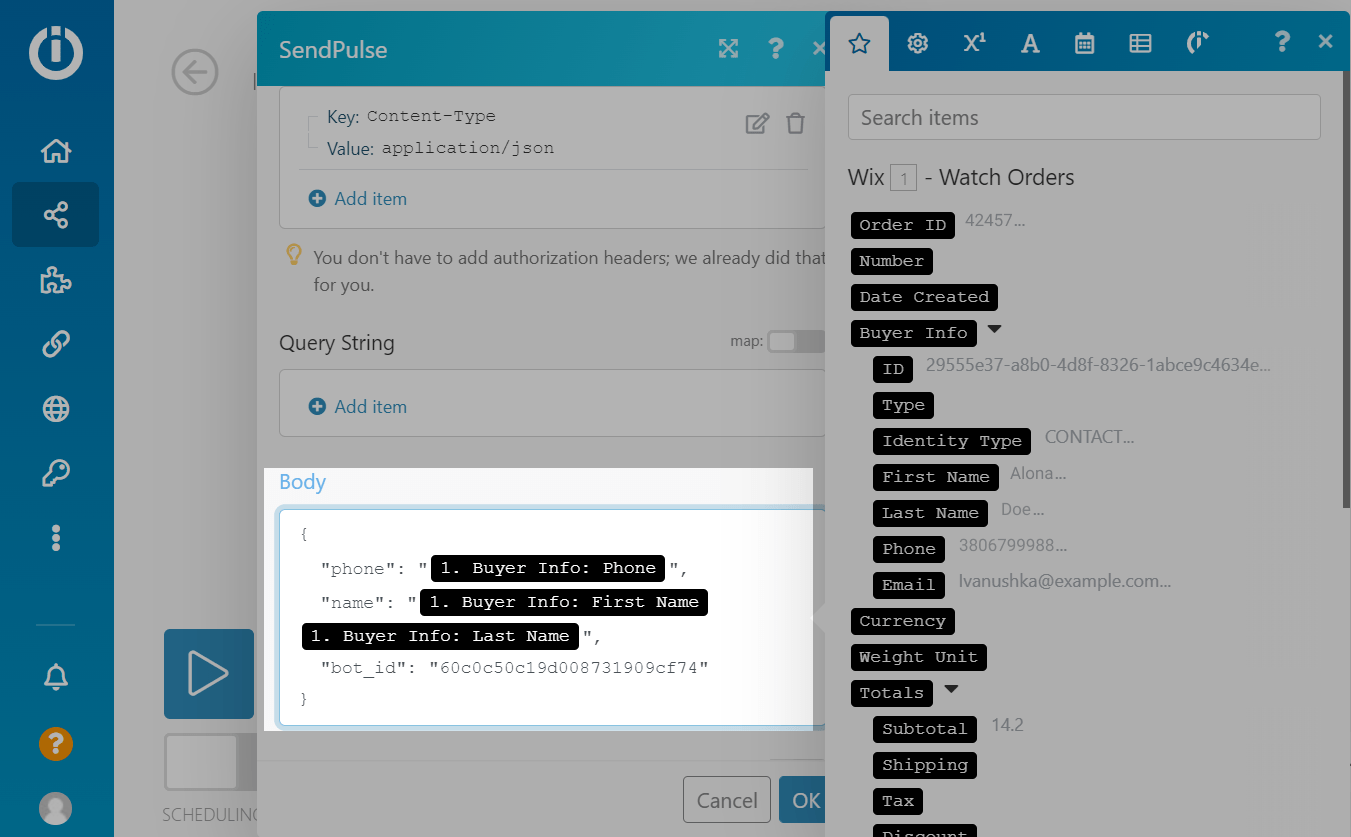

Enter the body of the request in the field:

{
   "phone":"string",
   "name":"string",
   "bot_id":"string"
}



Where:

phone The user's phone number in the international format. It is specified in the data received from the client in the previous element.

For variables from the "WIX Watch Order" you can use the Buyer Info: Phone variable.

name User name. For variables from the "WIX Watch Order" you can use the Buyer Info: First name variable with a space and Buyer Info: Second name.
bot_id The bot ID of the audience you are adding a contact to You can get it from the address bar on the bot page after bots/whatsapp.

Or you can add the "SendPulse" element with the "Make API call" action, send a request using the "Get list of connected bots" method, and use the data: id variable.

Note: if you don't have the 1.Buyer Info: Phone, 1.Buyer Info: First name and other variables (1 is the element number in Integromat in which you received this variable. For the starting element, it will always be 1. If you receive information from several elements, the desired element number may be different), click Run once, and run the flow in the chatbot in which you set up the webhook.

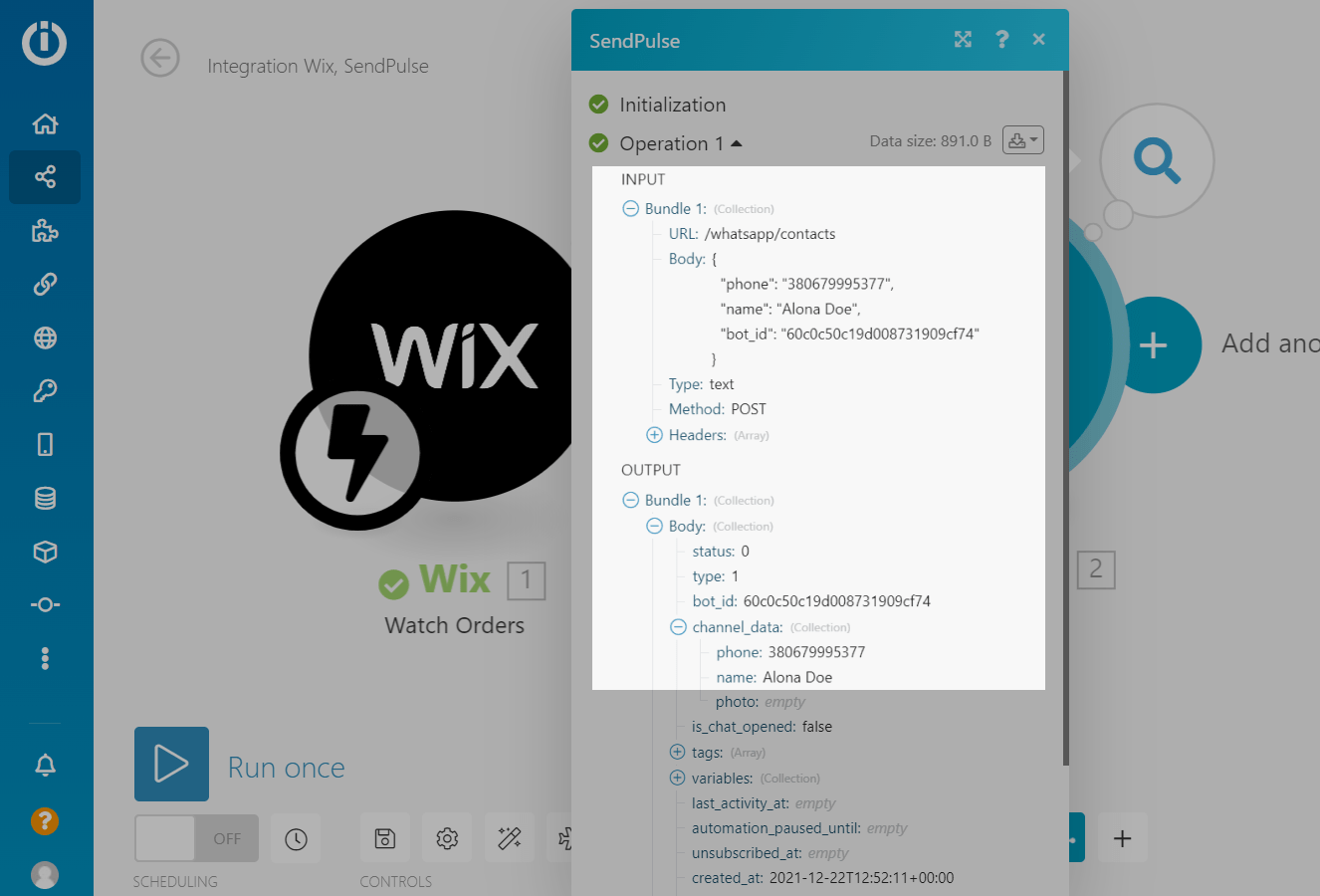

To test the scenario, click Run once. To view the data received and sent by the element, click on the number to the right of the element.

You can also view your bot's audience to check the contact you've added.

Action "Add Tag"

You can add a tag to any contact to filter and segment your contacts by a certain attribute. This way, you can find contacts easier and work with each of them individually.

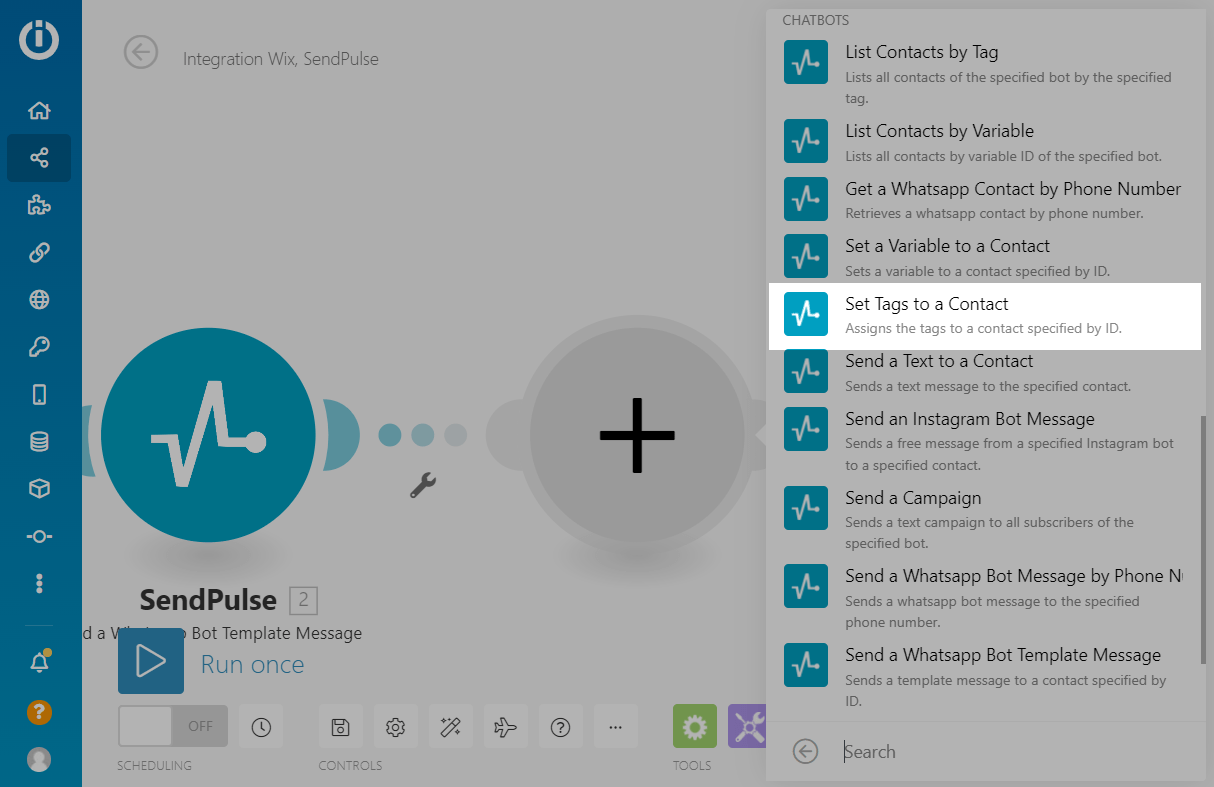

Click Add another module, and select the SendPulse element with the "Set tags to a contact" action.

In the "Connection" field, select the created connection to SendPulse.

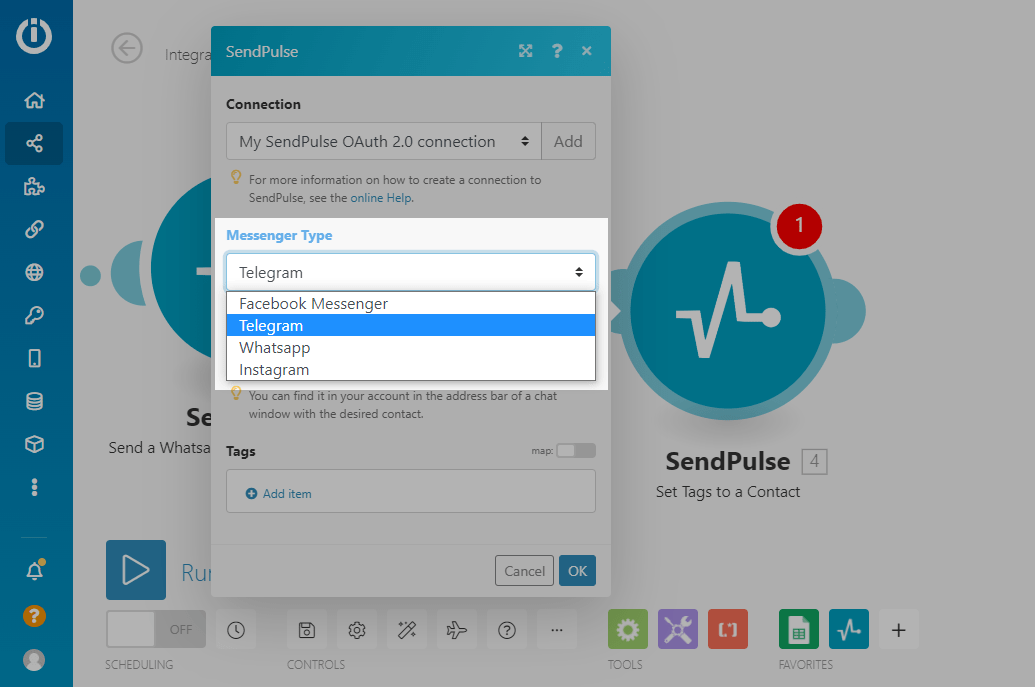

Select the messenger you want to send your message to.

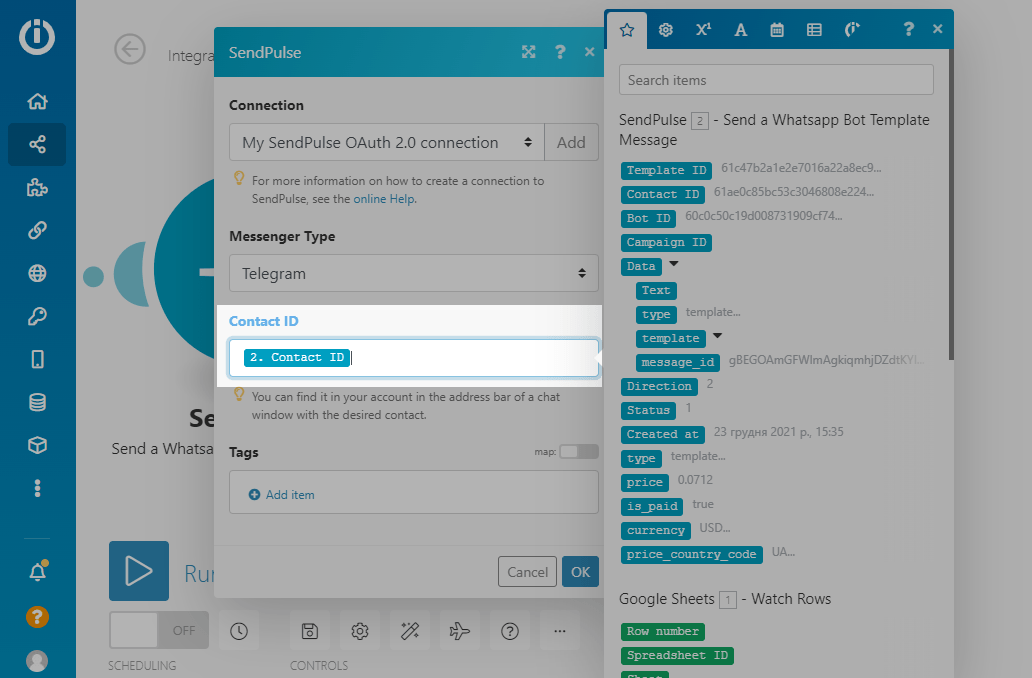

Select the contact_id variable obtained in the previous element.

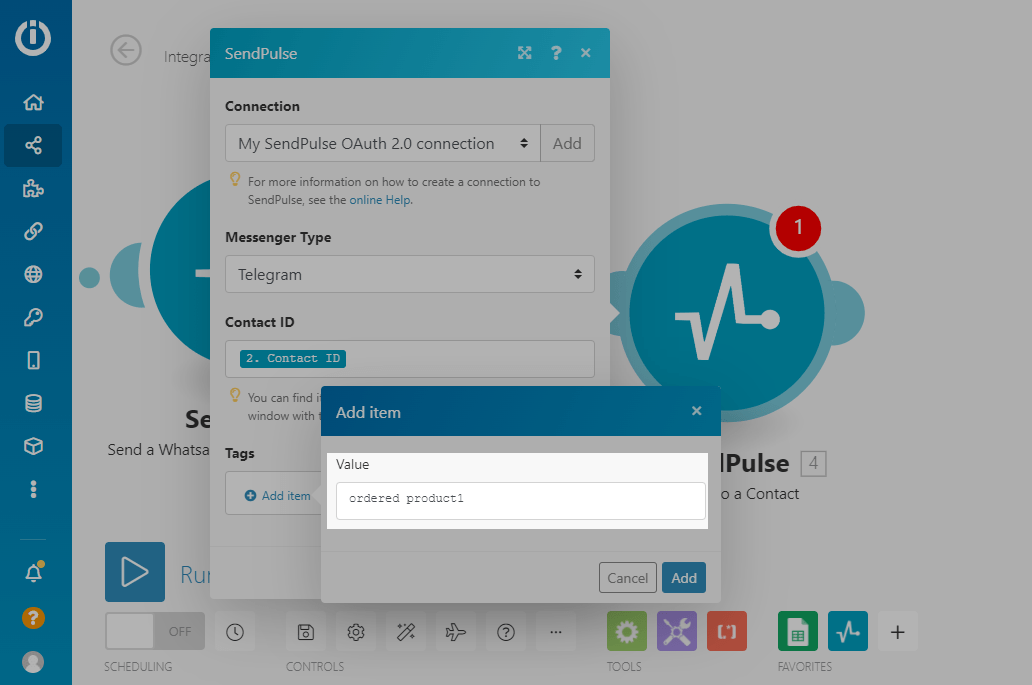

Enter the tag value.

Additional Features

You can also add additional elements and automate the information processing.

Variable Filter

You can add a filter between the elements that receive and transmit data to trigger the element only if the transmitted contact has certain information.

For example, you can use a filter when a customer has placed a special order, and you need to share specific information when communicating with them.

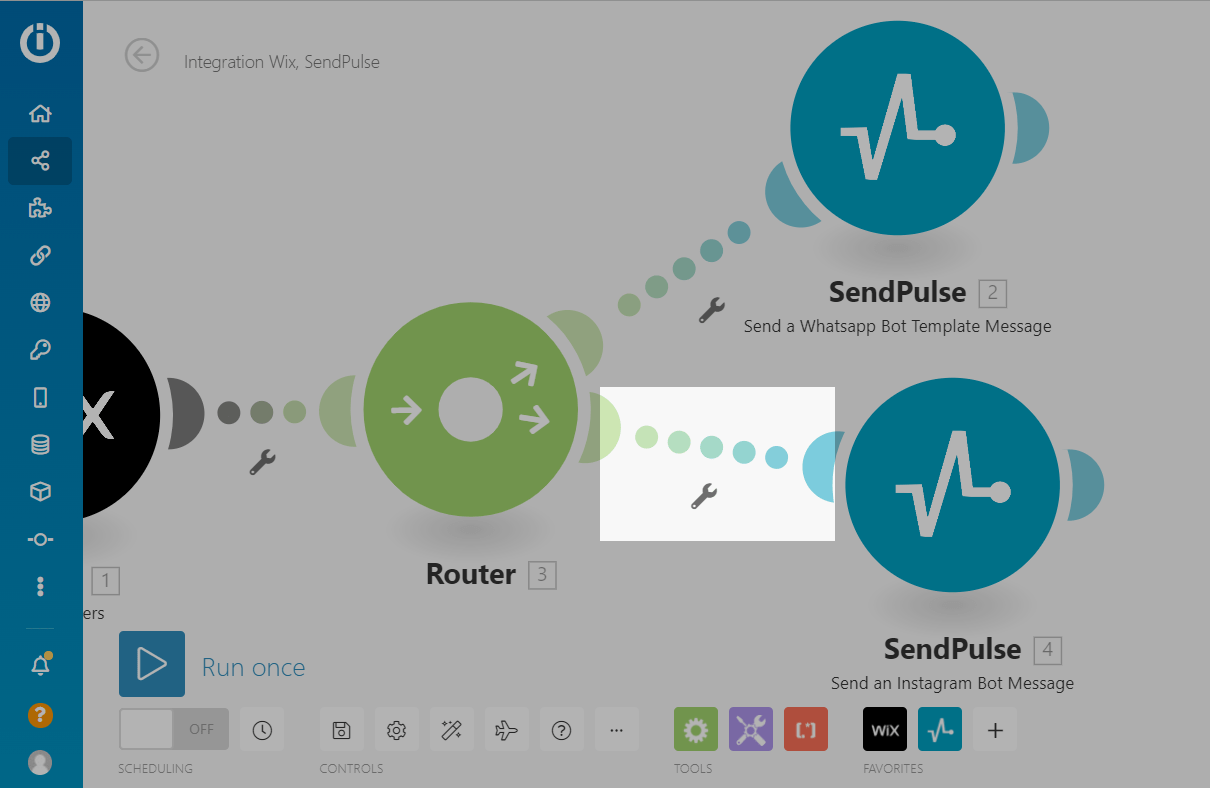

To branch scenarios depending on the result of filtering received data and send different messages, add "Router" between the elements. Next, from the "Router" element, set up the number of branches that corresponds with your number of filters. Then click on the line, and set the filter conditions. Read more about working with filters: How to Filter Data Using Variables.

Error Handler

You can also add an error handler so that the scenario will continue even if the element ends with an error.

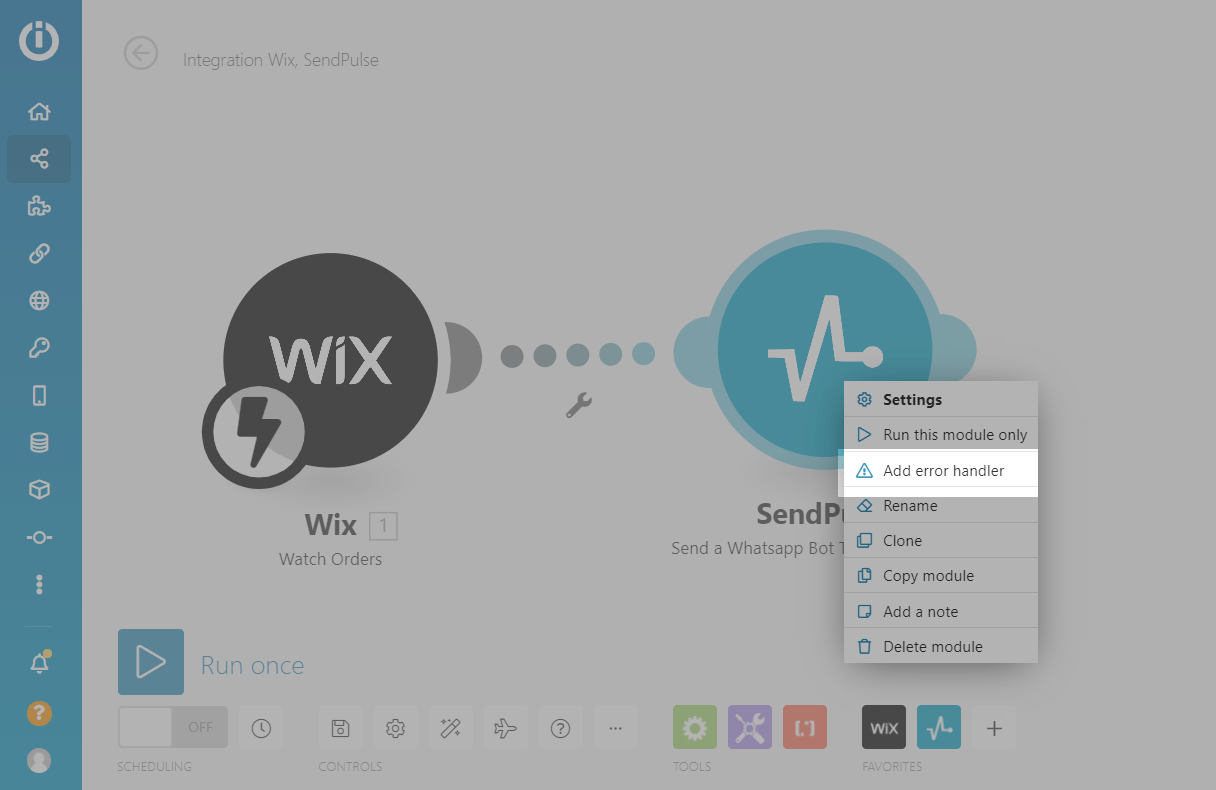

To add an error handler, right-click on the element, click Add error handler, select the rule, or execute the next element.

For example, if the user has changed the number, entered an invalid number, or stopped using the messenger, which makes the sendout to the number unsuccessful, you can add a sending element to another messenger. For your regular customers, you can set up sending messages to their messenger using contact_id.

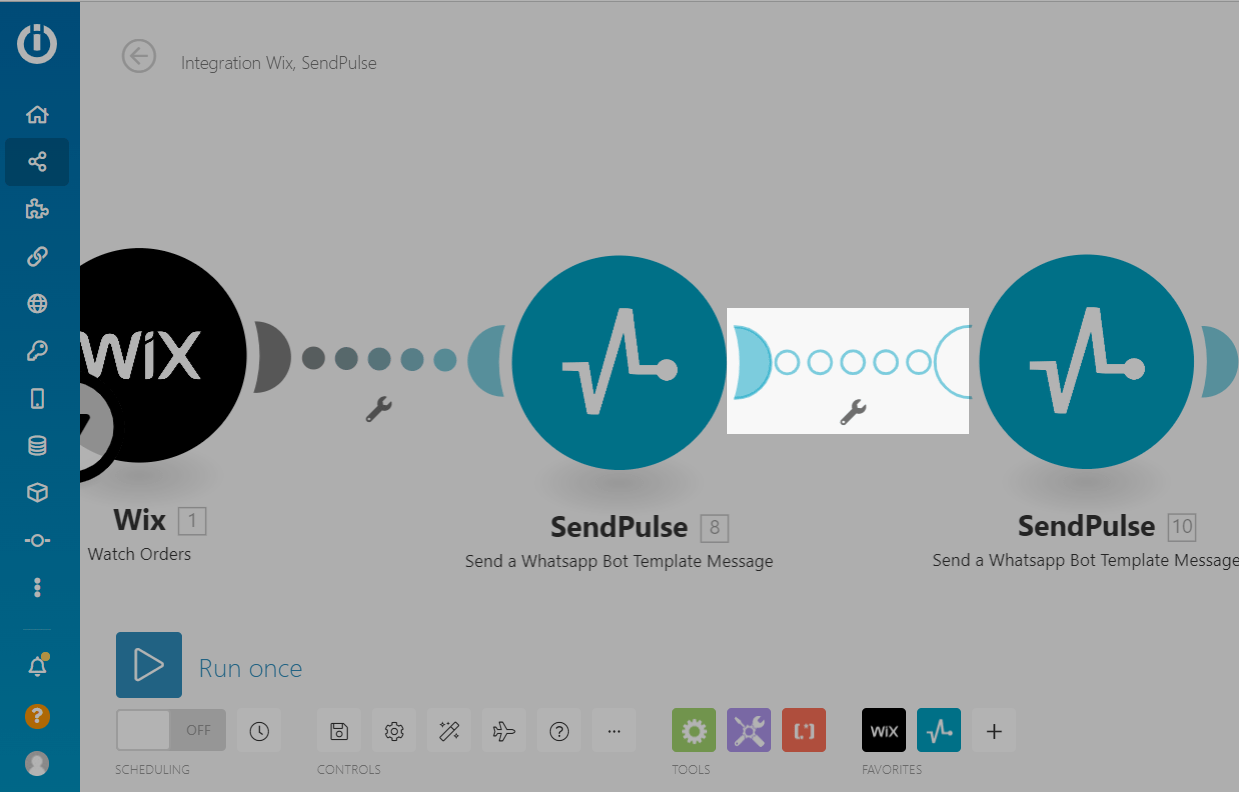

You can check the difference between a scenario branch that is executed if the previous element was executed successfully and a scenario branch that is executed if the previous element was executed with an error by the color of the line. The line between the elements, one of which is added through the "Error handler" element, will consist of empty circles.
