The API Request element in chatbots

Available with a paid pricing plan, as well as during the 7-day free trial

Automating the data retrieval process has become even easier with API requests. You can request data about the information your user is interested in, create a customer profile, or register for an event in external systems. In response, you receive information that you can display directly in a message to the user or save it to a chatbot variable.

How to send a data request

Drag the API Request element to the workspace, connect it to the element, after which, you want to get information.

Select the type of request:

  • A GET request is usually used to get existing data;
  • A POST request is usually used to create a new object in the system and obtain information about it.

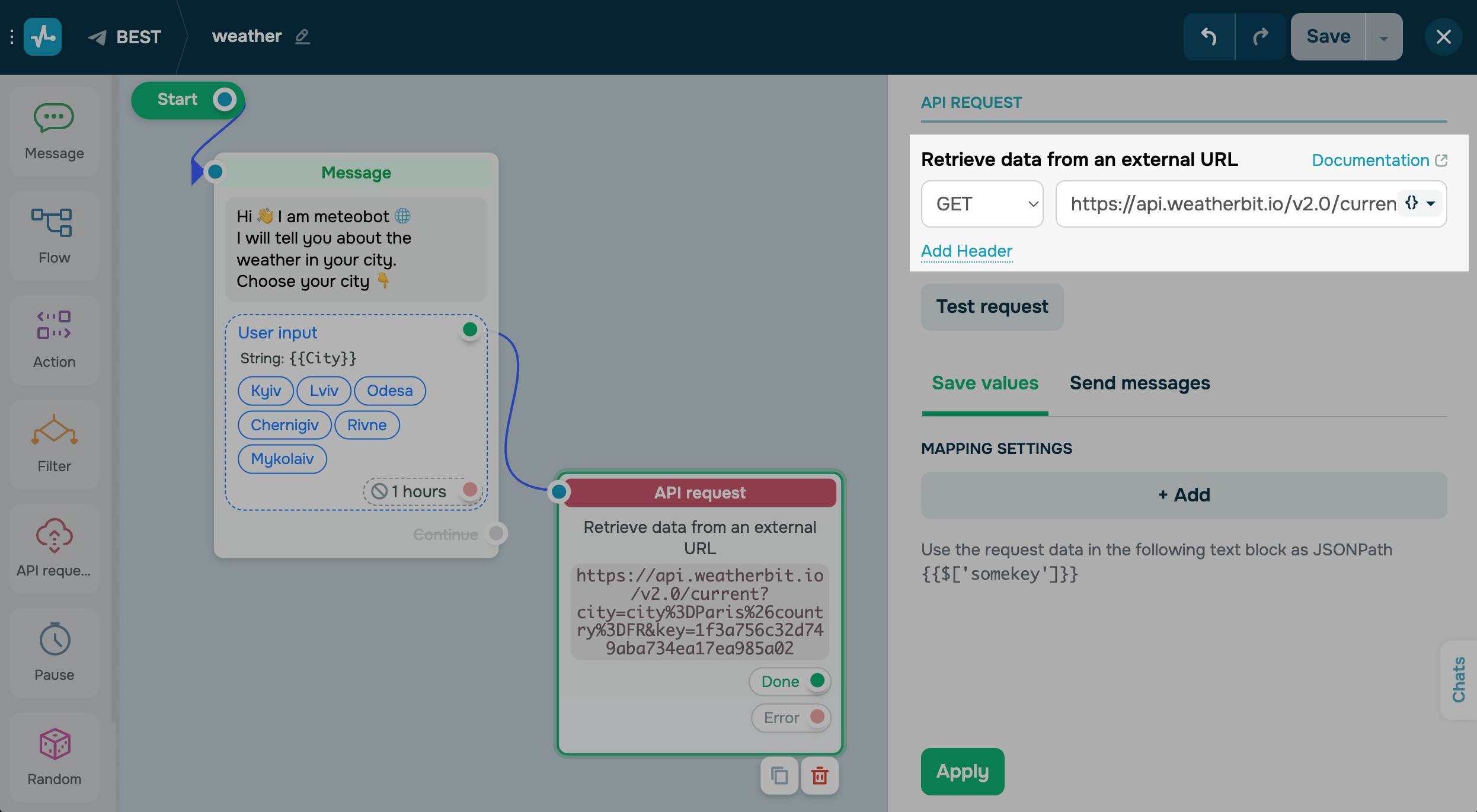

Enter the URL to send the request to. You can use your chatbot custom and global variables and modify them in the request.

You can add request headers, for example, to authorize requests. You can also use bot variables in request headers.

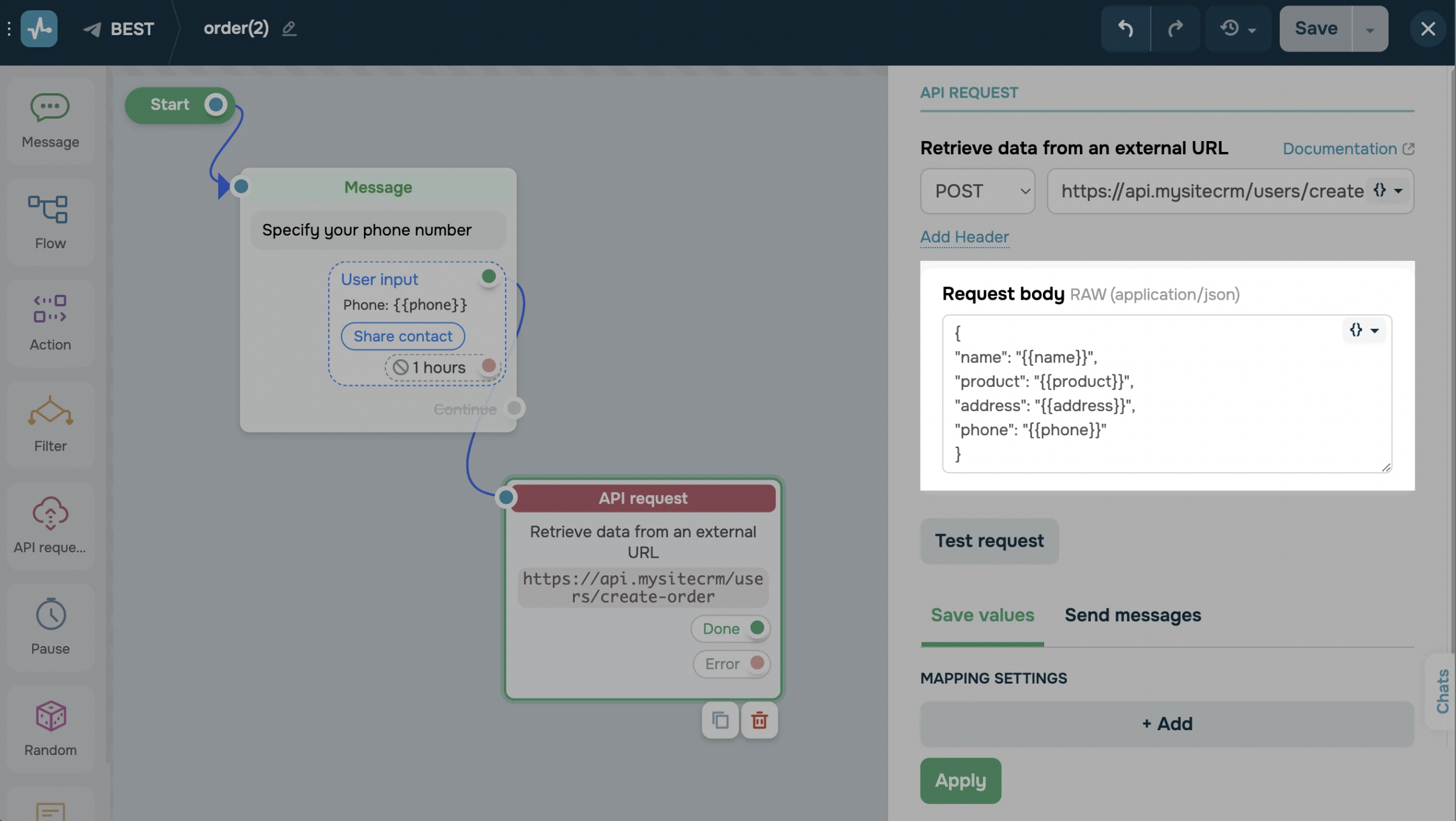

If you are using a POST request, in the required field enter the request body in JSON with parameters. You can also modify a request body.

Click on Test Request to check the submission of the data. Also, this test is useful for data recognition for the next settings.

How to use the received data

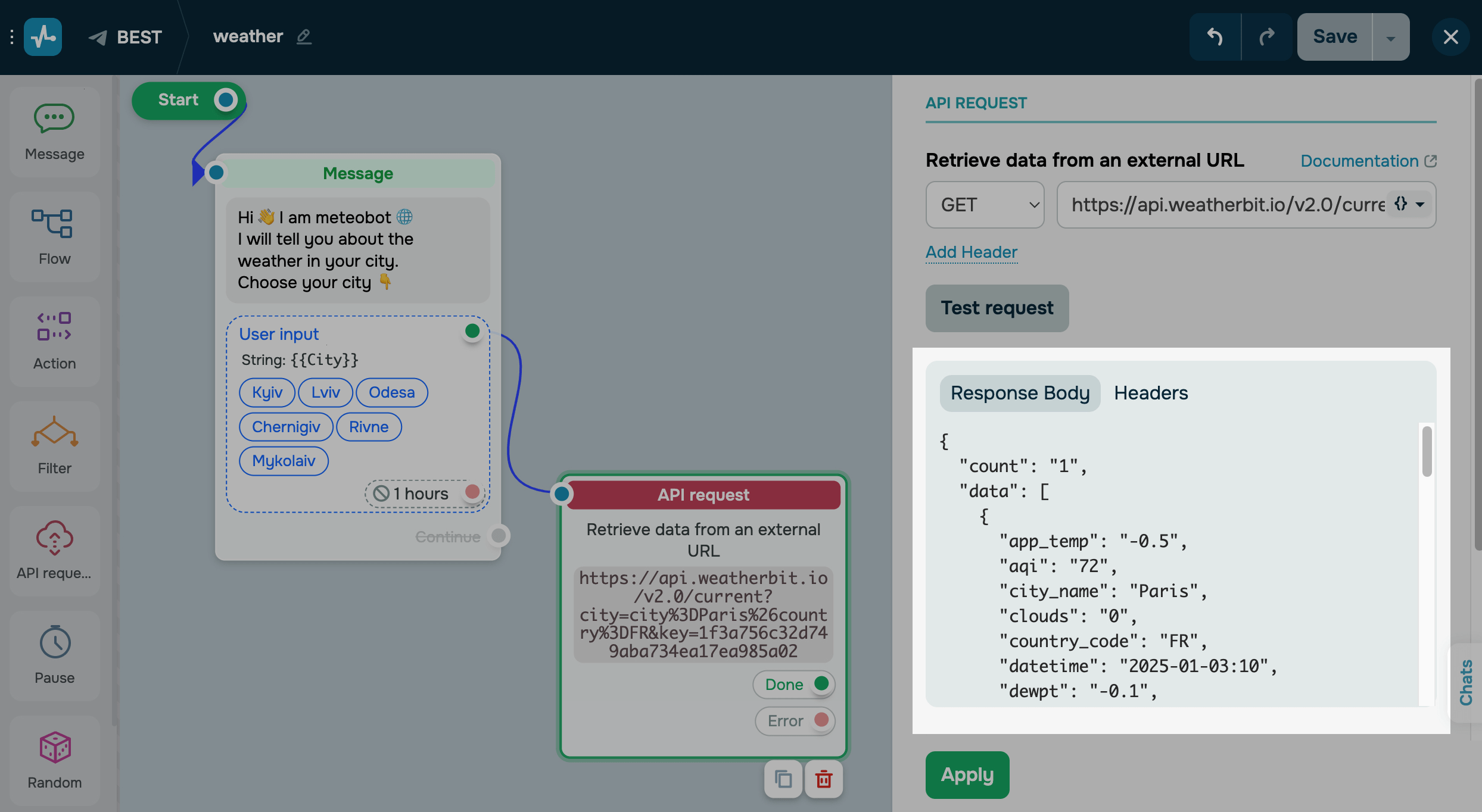

If the request is successful, you will receive a response body, and the user will go to the Done branch.

All request responses with the 2xx status will go to the Done branch. Request responses with other statuses will go to the Error branch, and you cannot use that data. Read more: How to continue a flow in case of a request error.

You can use the received data in the next element, save it to a chatbot variable for repeated use, or send a list of messages based on the specified array.

The API can return a response of up to 65 KB in size. The time limit for processing a request is 60 seconds.

Using data by saving it to a variable

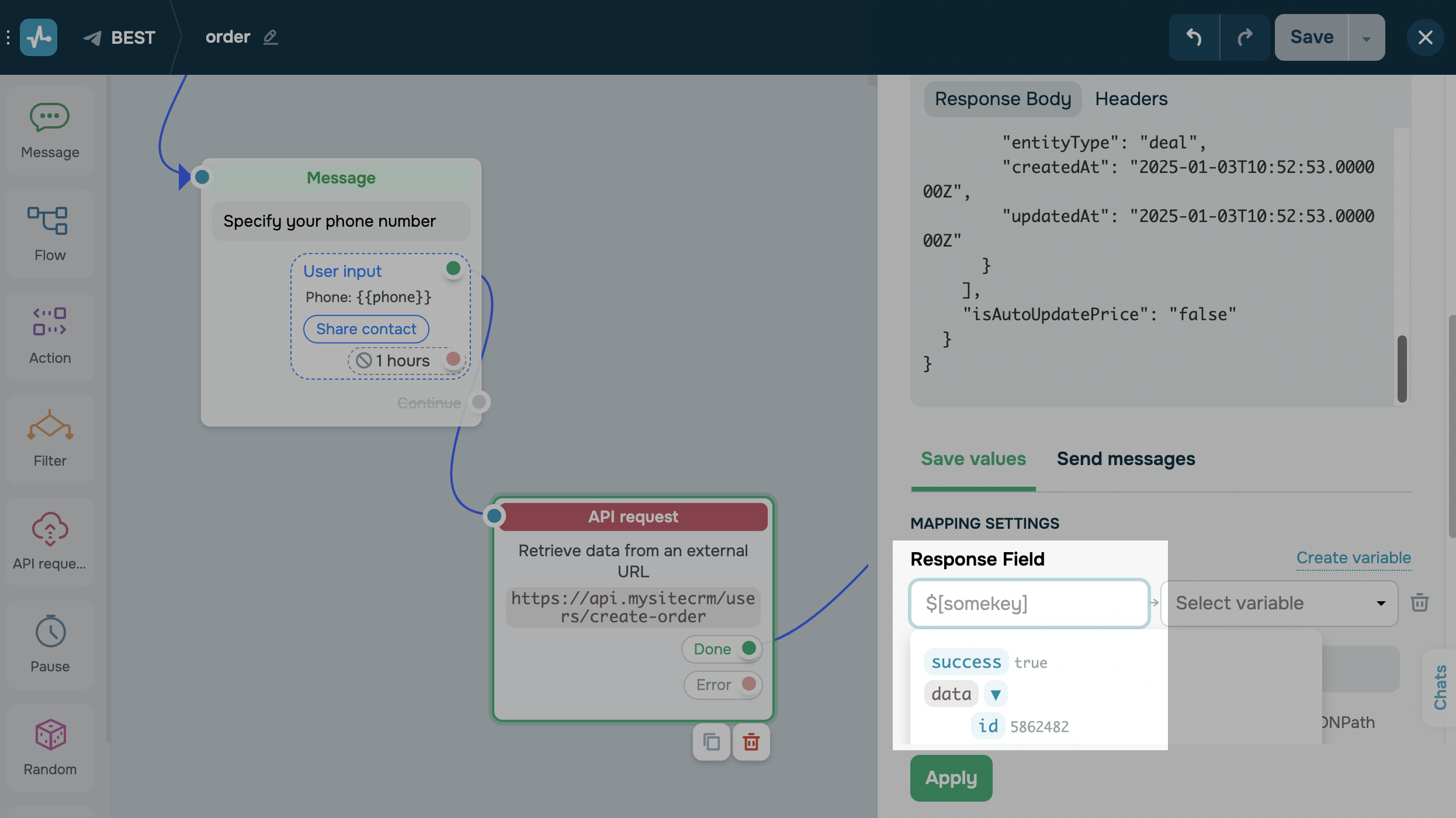

To save the data as variables for future use, in the API Request element, go to the Save values tab and click Add in the mapping settings.

From the response field, select the key whose variable value you want to use.

Select the variable to store the value into. The response field allows storing values of up to 1,024 characters.

When you have saved the required number of variables, click Apply and proceed to create the next element.

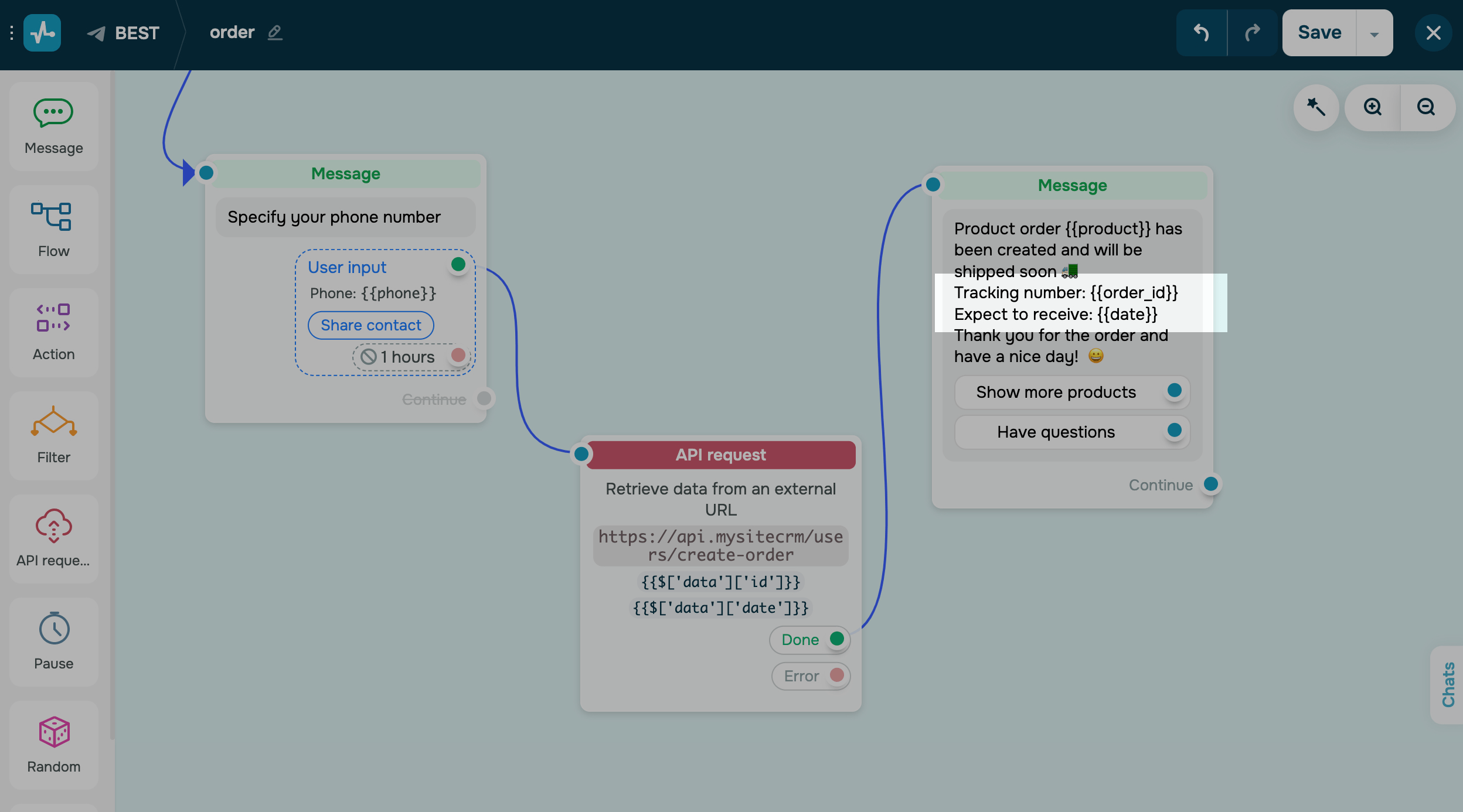

In this example, we created an order, received data from our CRM, saved it as variables, and informed the user to quickly identify the service or product they ordered.

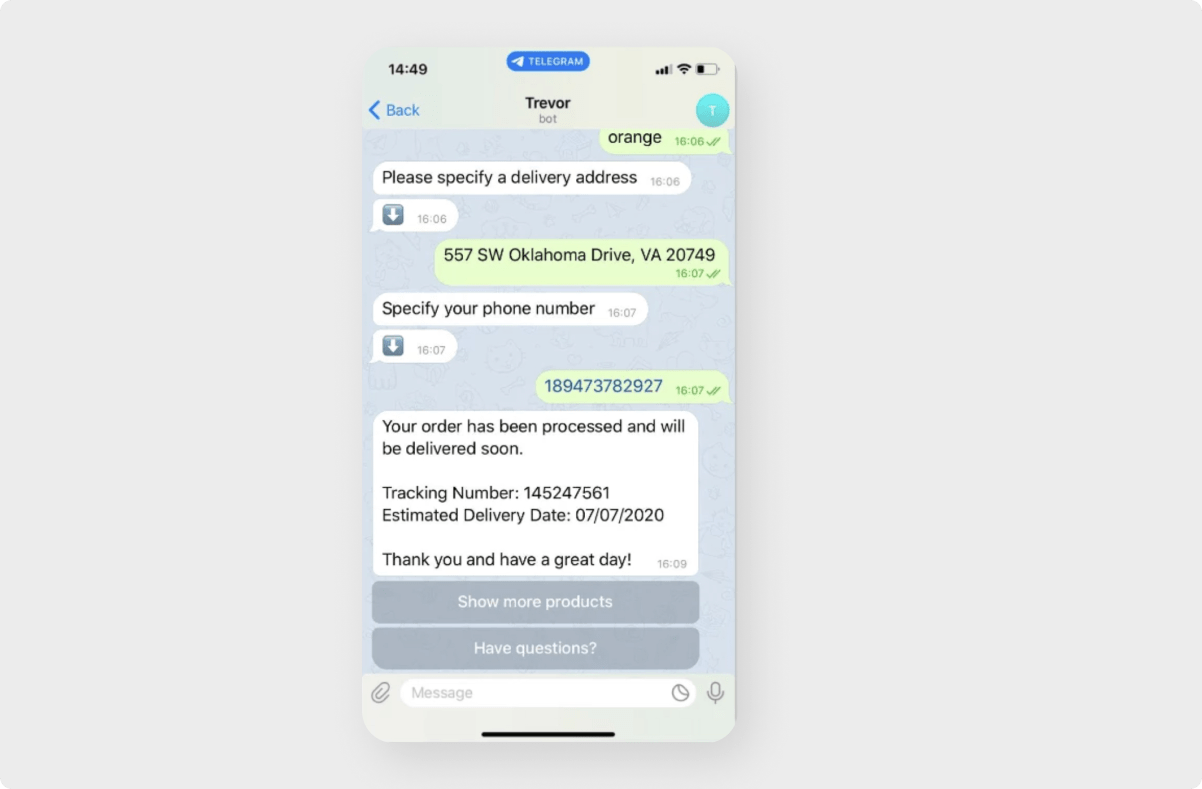

As a user, communicating with your chatbot looks like this:

Using data as a JSON Path expression

If you do not need to write data to variables, you can use the received information by inserting a JSON path expression of the structure.

To do this, after checking the request and receiving a successful response, click Add, find your variable and copy the JSON Path from the response field.

Then click Apply and proceed to create the next item.

Data that you are not writing can only be used once in the next text element.

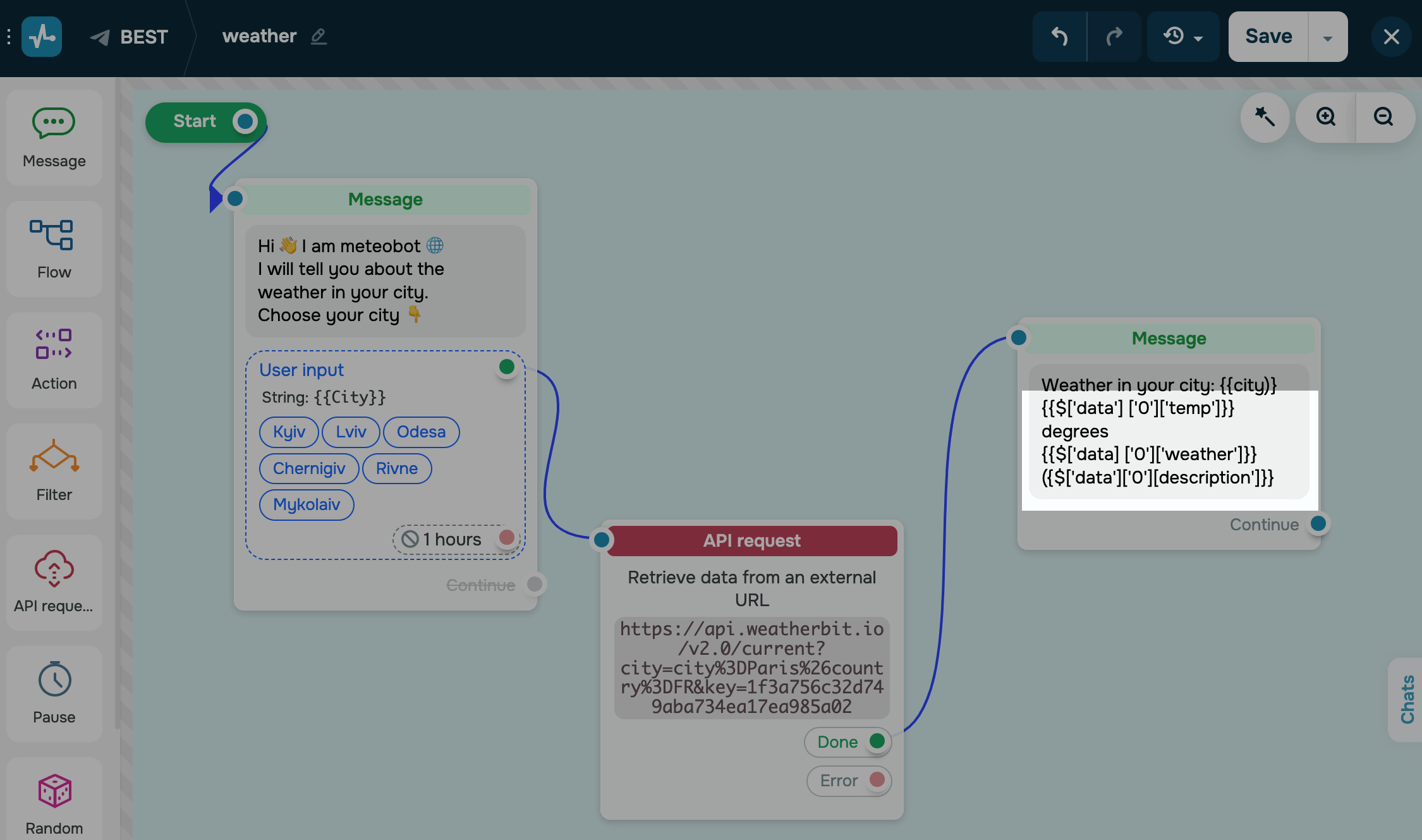

In the text message, add JSON Path {{$ ['somekey'] ['nestedkey']}}.

As a user, communicating with your chatbot will look like this:

Using data for sending cards

On a paid pricing plan, you can generate and send cards from the data received in the request response. To do so, use the Send messages tab, add a link to your API, and fill in the form fields with the data from the obtained array.

Read more: How to send message cards in chatbots.

How to continue a flow in case of a request error

You can also branch your scenario and, in case of a failed API request, continue your flow using the Error branch. For example, you can notify users about an error, request the necessary data again if they do not match, or invite a manager.
